Grille: Service and Repair
Front Grille Cover Replacement 1.

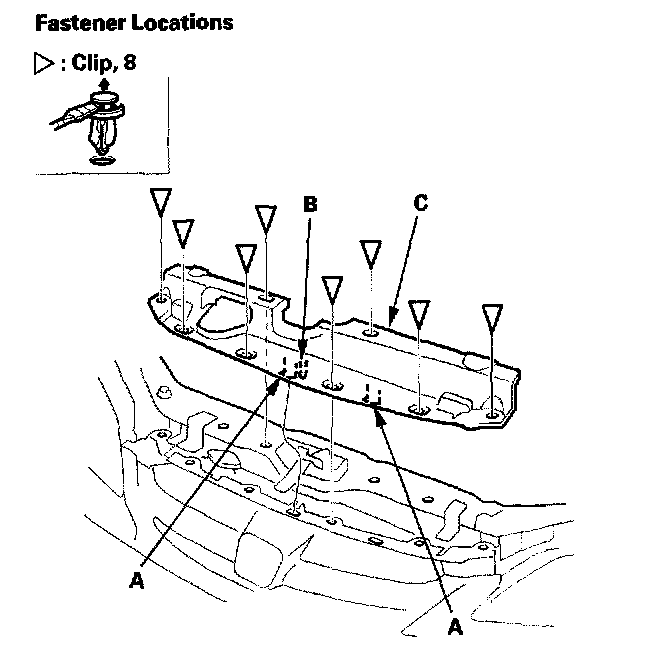

Remove the clips, and release the hooks (A) and pin (B), then remove the front
grille cover (C). Take care not to scratch the front
bumper and body.
2.
Install the cover in the reverse order of removal, and note these items:
-
Replace any damaged clips.
-
Push the clips into place securely.
