Exhaust Gas Recirculation: Description and Operation

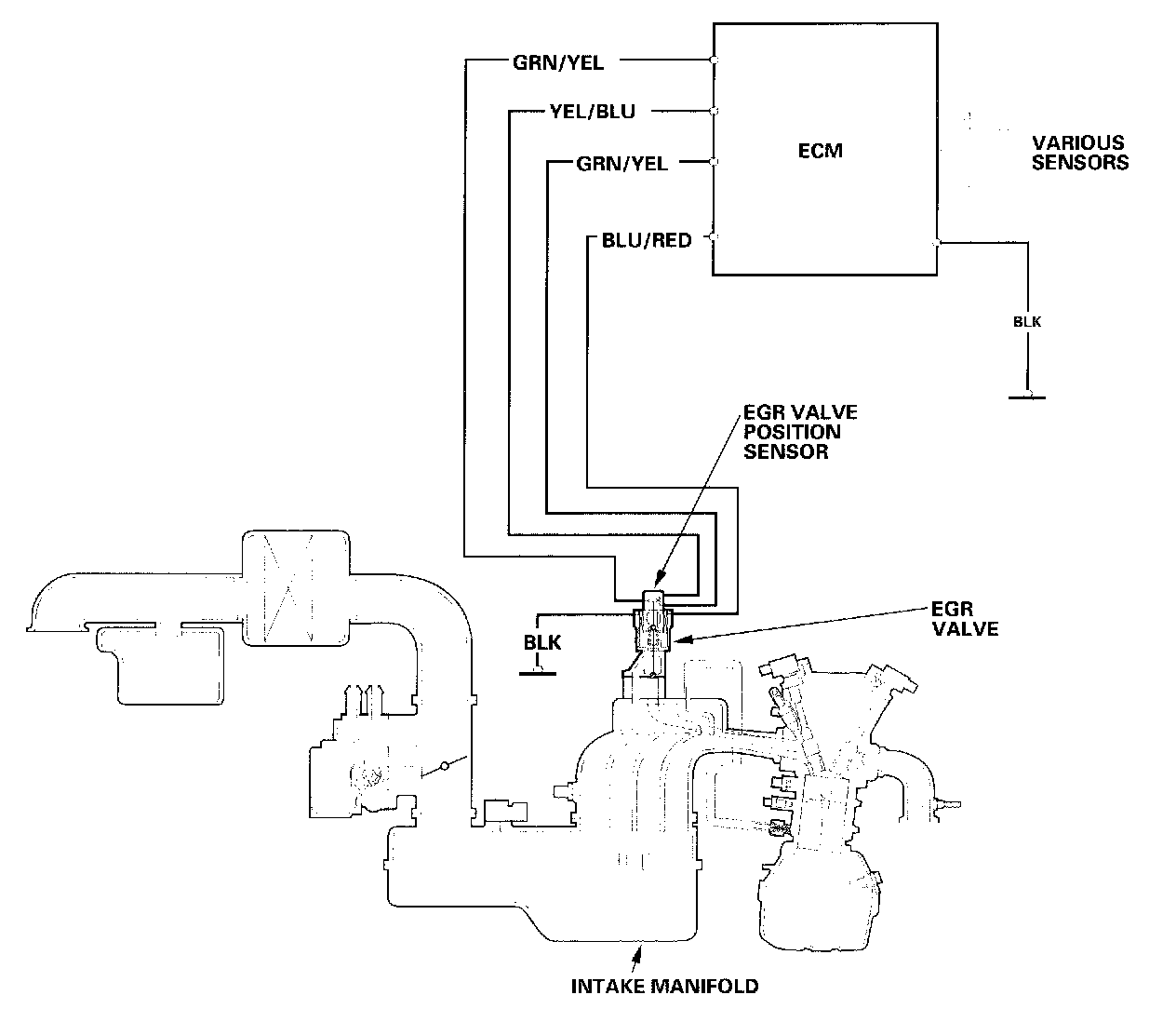

Exhaust Gas Recirculation (EGR) System Diagram The EGR system reduces oxides of nitrogen (NOx) emissions by recirculating exhaust gas through the
EGR valve and the intake manifold into the combustion chambers. The ECM memory includes the ideal EGR valve position for varying operating conditions.
