Rocker Arm Assembly and Camshaft

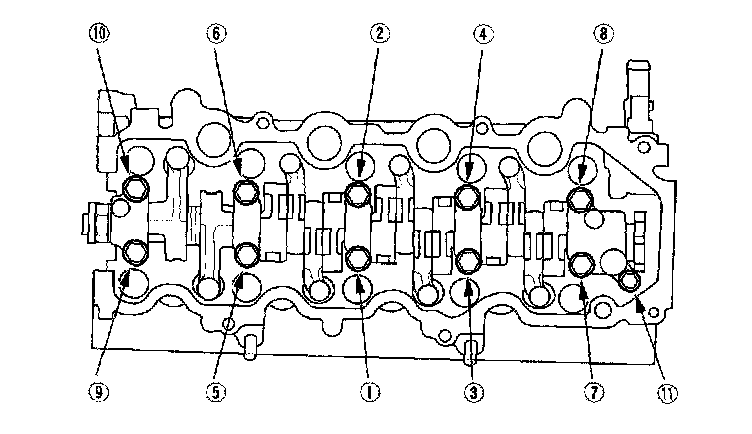

Apply engine oil to the bolt threads and flange. Tighten each bolt two turns at a time in sequence.
Specified torque:
8 mm bolts: 22 Nm (2.2 kgf-cm, 16 ft. lbs.)
6 mm bolt: 12 Nm (1.2 kgf-cm, 8.7 ft. lbs.)
