Neutral Switch Test
Neutral Switch Test 1.

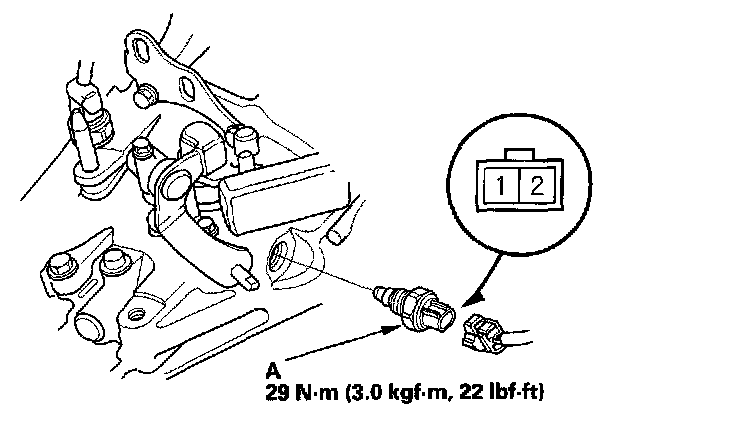

Disconnect the neutral switch (A) connector.
2.
Check for continuity between the neutral switch 2P connector No. 1 and No. 2 terminals. There should be continuity when the shift lever is in neutral.
3.
If necessary, replace the neutral switch. Apply liquid gasket (P/N 08718-0001), and install it on the transmission housing.
