Television / Monitor: Service and Repair
Rear Controller and Screen Removal / InstallationNOTE: Put on gloves to protect your hands.
Take care not scratch the headliner and display cover.
1. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
2. Disconnect the negative cable from the battery.
3. Remove the display cover (A).
4. Remove the mounting bolts (A).
5. Disconnect the connector (B) from the rear controller and screen.
6. Install in the reverse order of removal, and note these items:
- Make sure the rear controller and screen connector is plugged in properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.

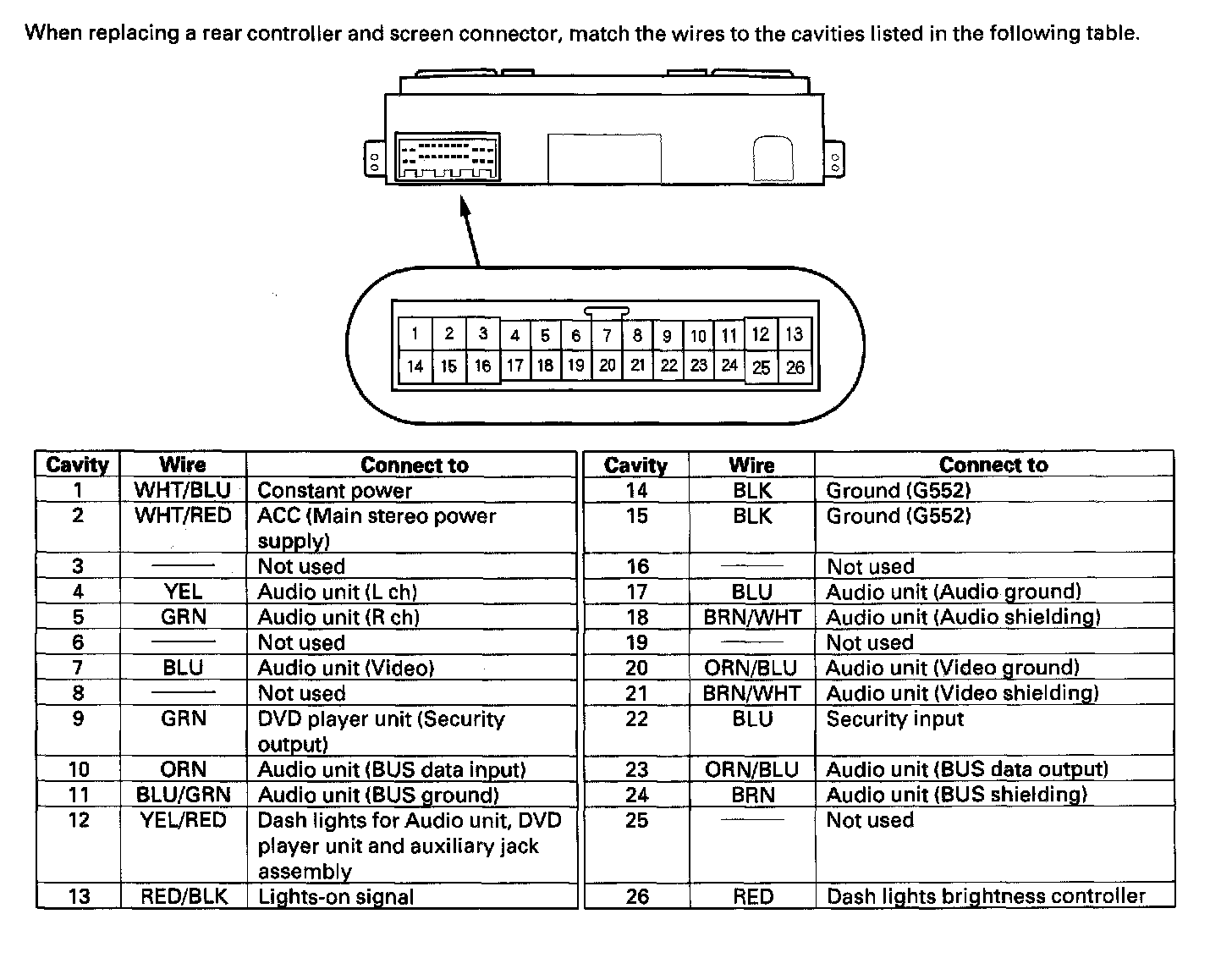

Connector Replacement
Rear Controller and Screen:
