Forced Starting of Display

Forced Starting of Display

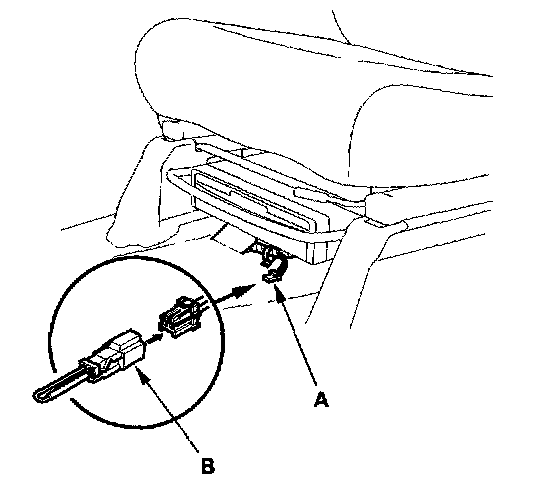

1. Locate the navigation service check connector (A) under the front passenger's seat.
2. Connect the SCS service connector (B) to the navigation service check connector (A).

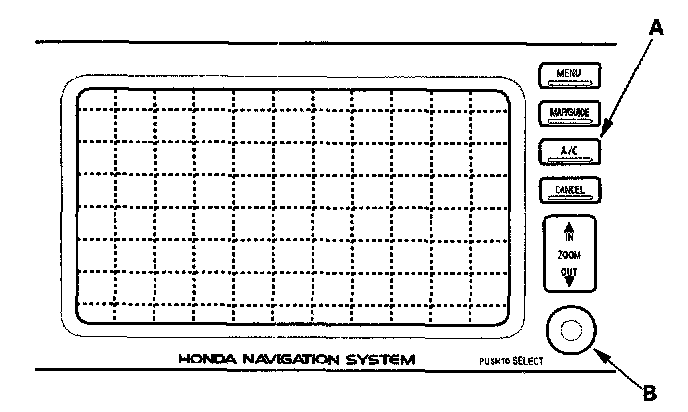

3. Press and hold the A/C key (A), press and hold the joystick (B) up, then turn the ignition switch to ACC
4. Check that the diagnosis menu for the picture diagnosis start up and then changes to the system link screen.
