Trunk / Liftgate: Service and Repair
TailgateReplacement
NOTE: Put on gloves to protect your hands.
1. Remove the tailgate trim panel
2. Remove the tailgate spoiler.
3. Disconnect the tailgate harness connectors (A), and rear window defogger connector (B). Detach the harness clips (C), and remove the grommets (D), then remove the wire harness (E) from the tailgate (F).

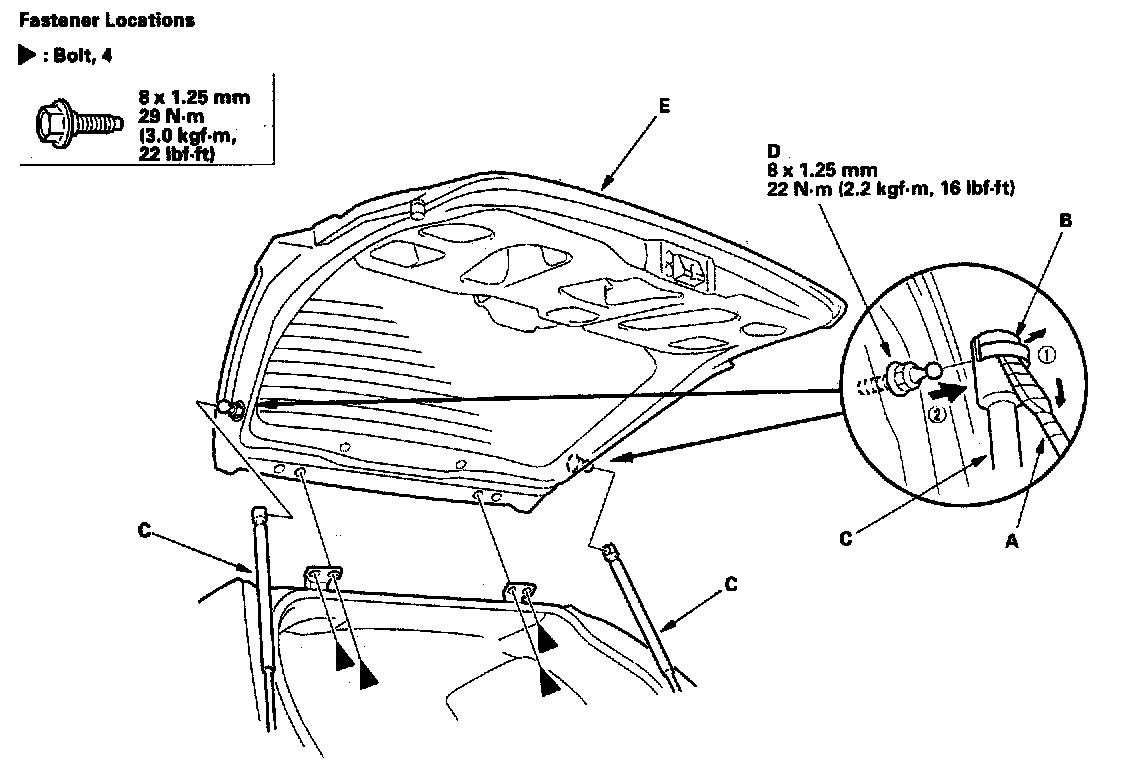

4. With a flat-tip screwdriver (A), pry the support strut clips (B) away from each of the support struts (C), but do not remove the clips. With the help of an assistant, release the support struts from the pivot bolts (D).
5. With the help of an assistant, remove the bolts, then remove the tailgate (E). Take care not to damage the tailgate and body.
6. Install the tailgate in the reverse order of removal, and note these items:
- Before reattaching the support struts, adjust the tailgate alignment.
- Make sure the tailgate opens properly and locks securely.
- Make sure the connectors are connected properly, and the wire harness is routed properly.

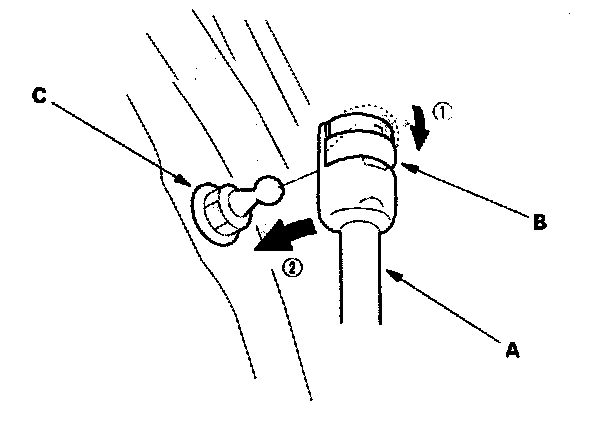

- When reattaching the support struts (A), set the clips (B) to their original position, then push the support struts onto the pivot bolts (C).
