Removal and Replacement

Front Grille Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to scratch the front bulkhead cover and front grille.

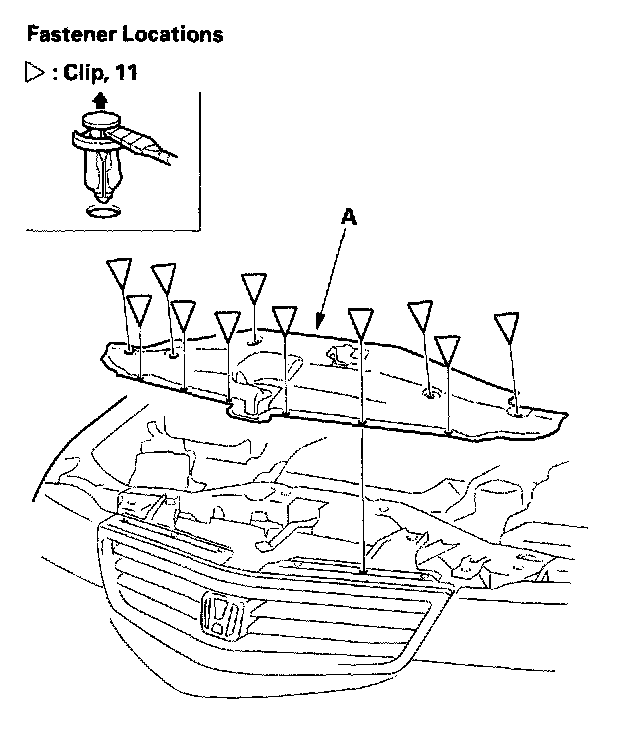

1. Detach the clips, then remove the front bulkhead cover(A).

2. Detach the clips, then remove the front grille (A).
3. Install the front grille in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
