Antilock Brakes / Traction Control Systems

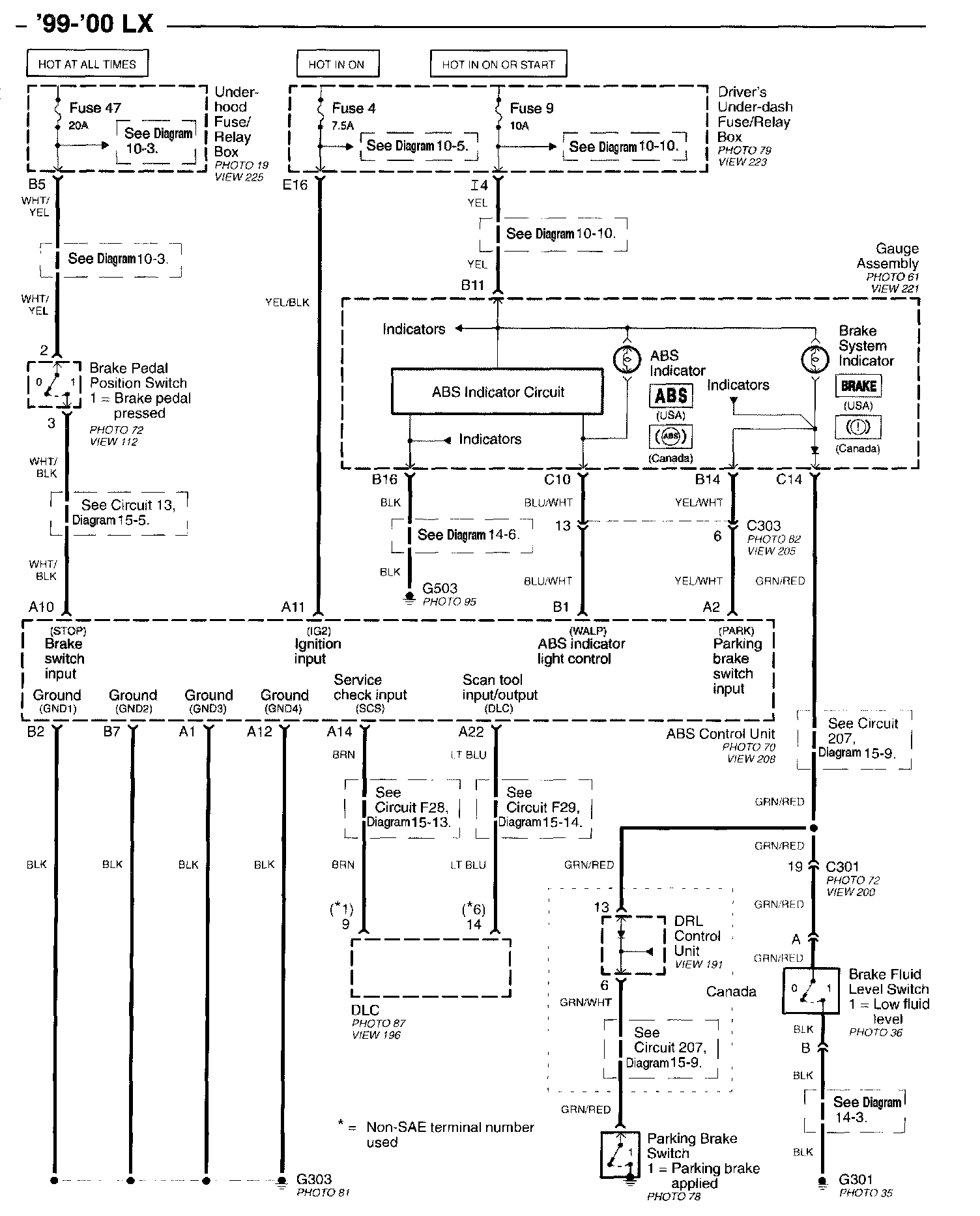

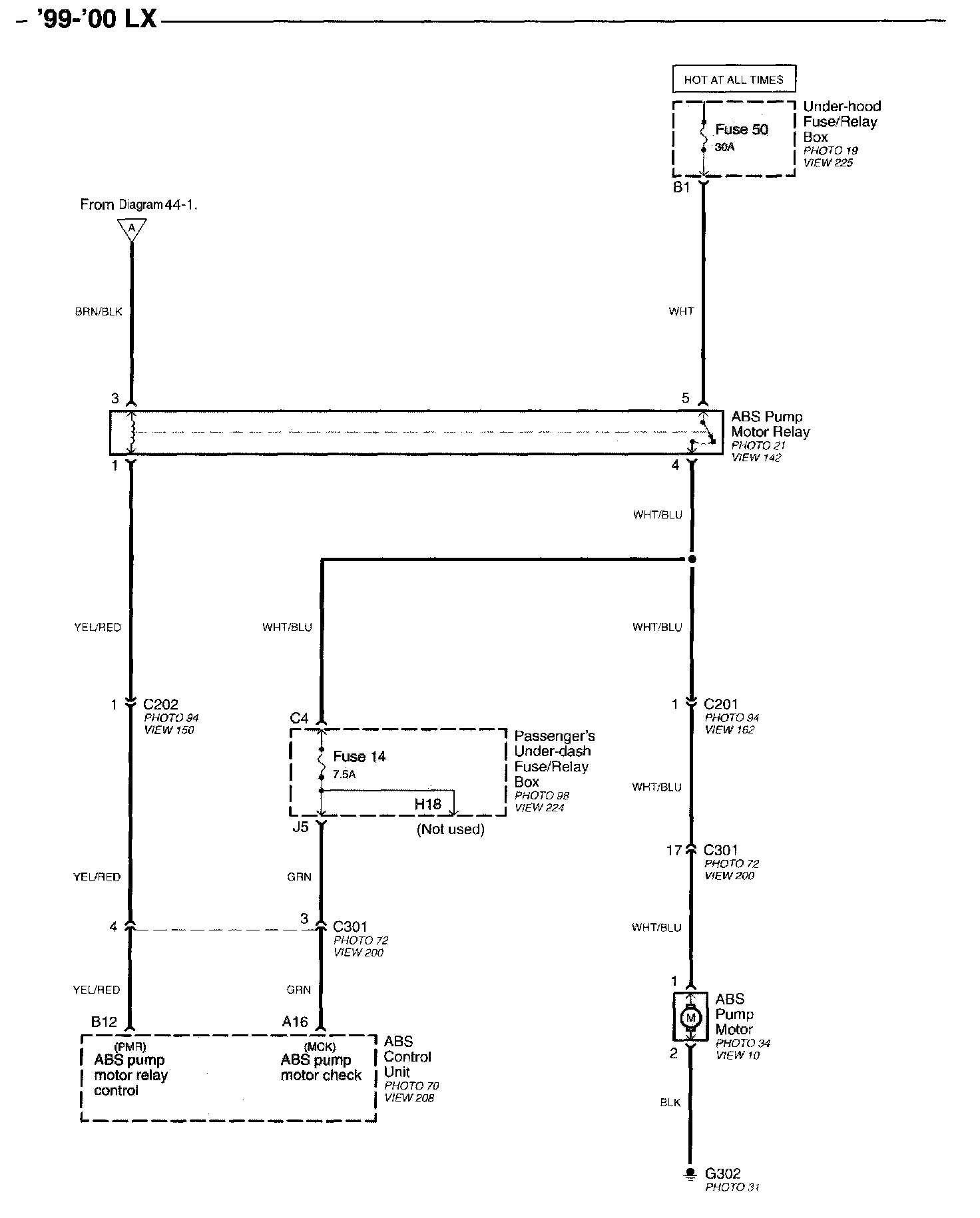

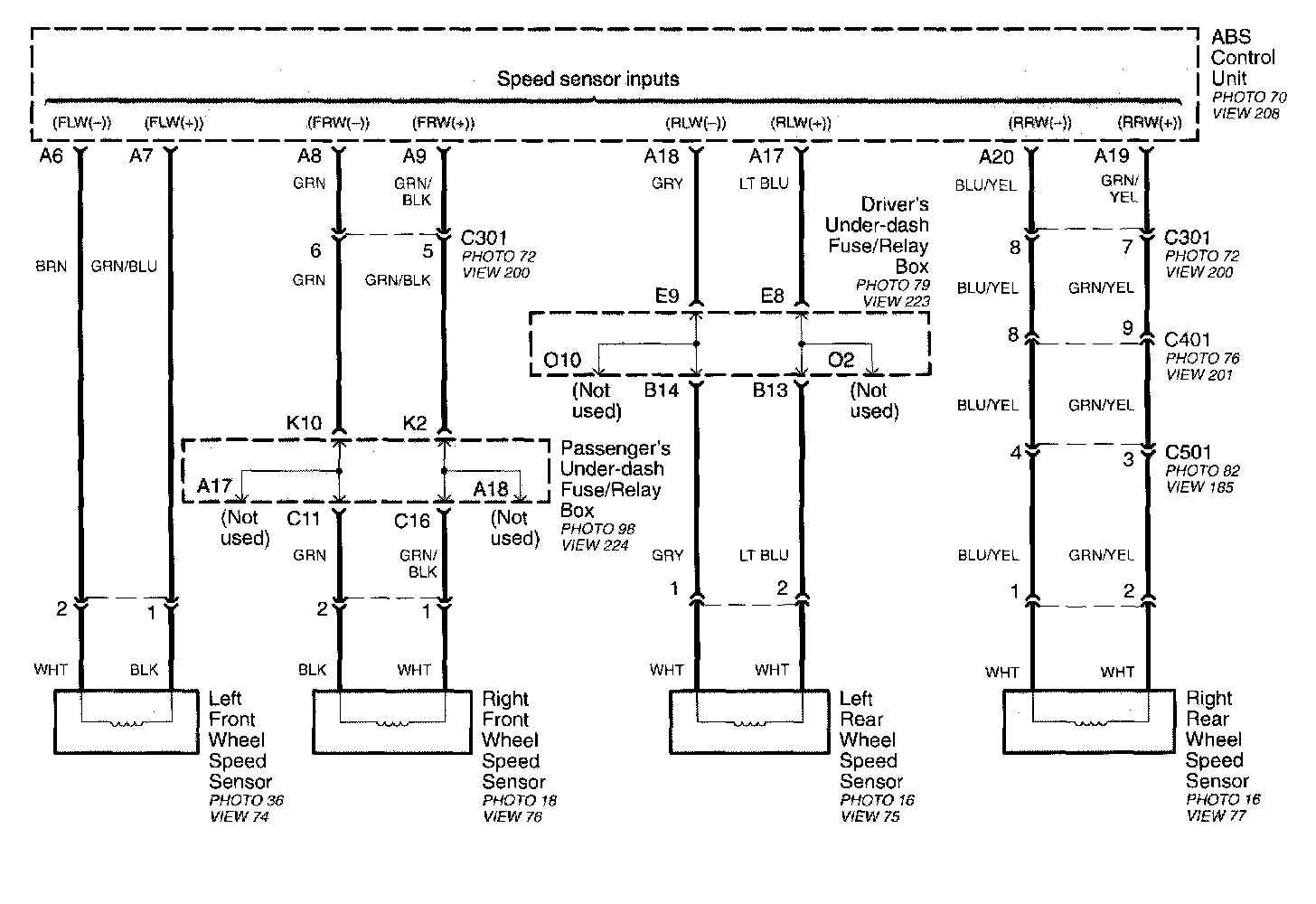

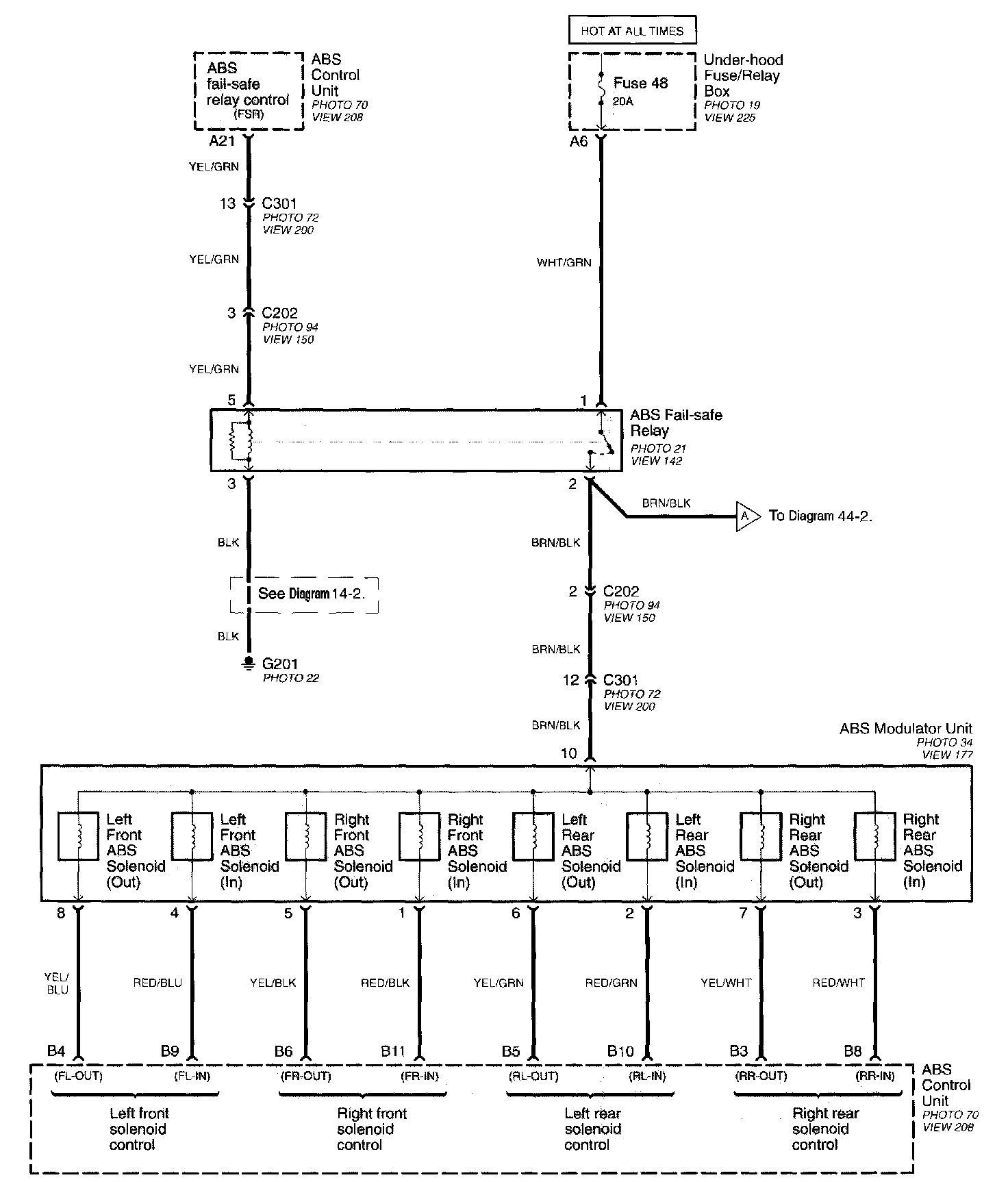

Diagram 44-0 (99-00 LX):
Diagram 44-1 (99-00 LX):
Diagram 44-2 (99-00 LX):
Diagram 44-3 (99-00 LX):

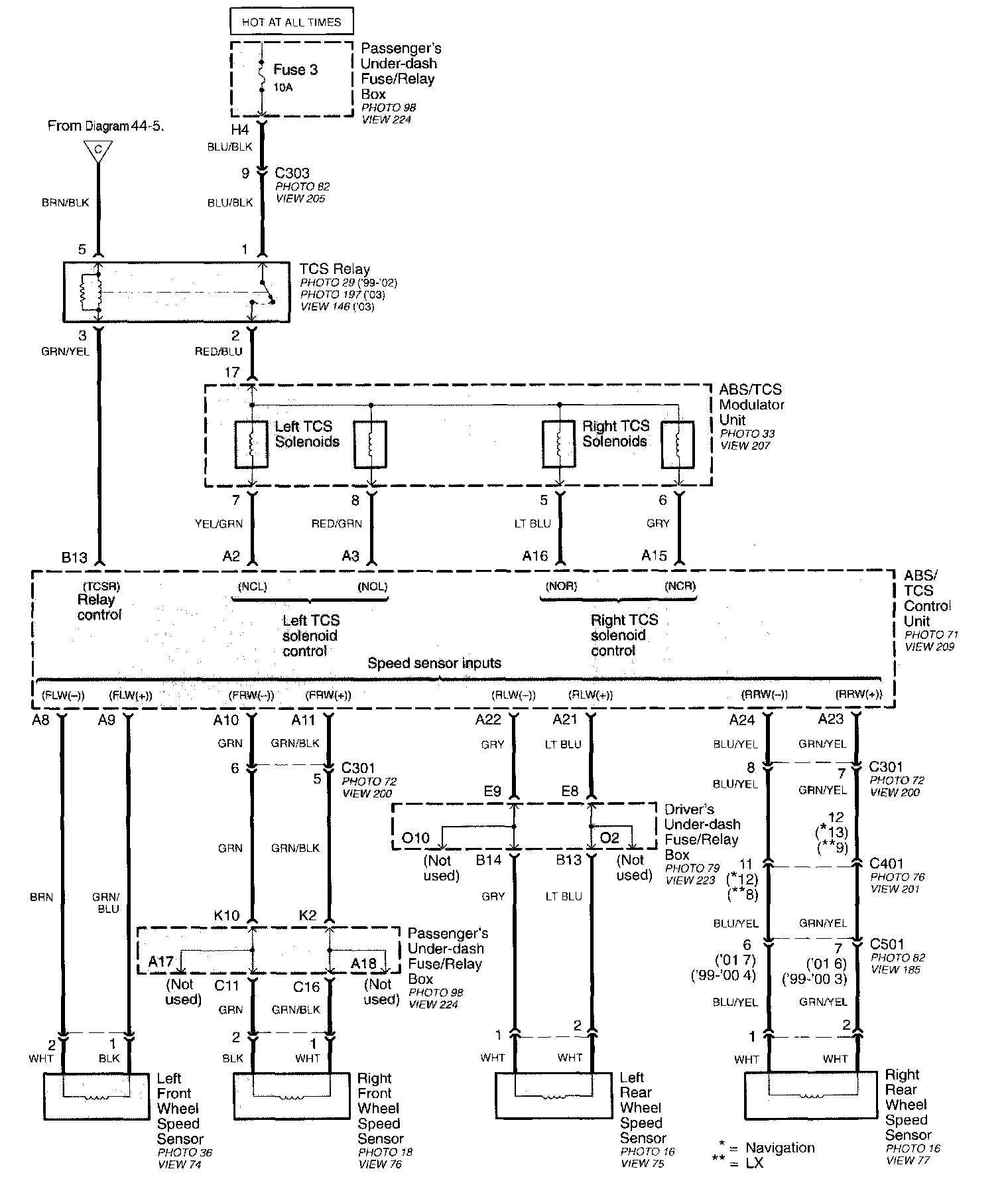

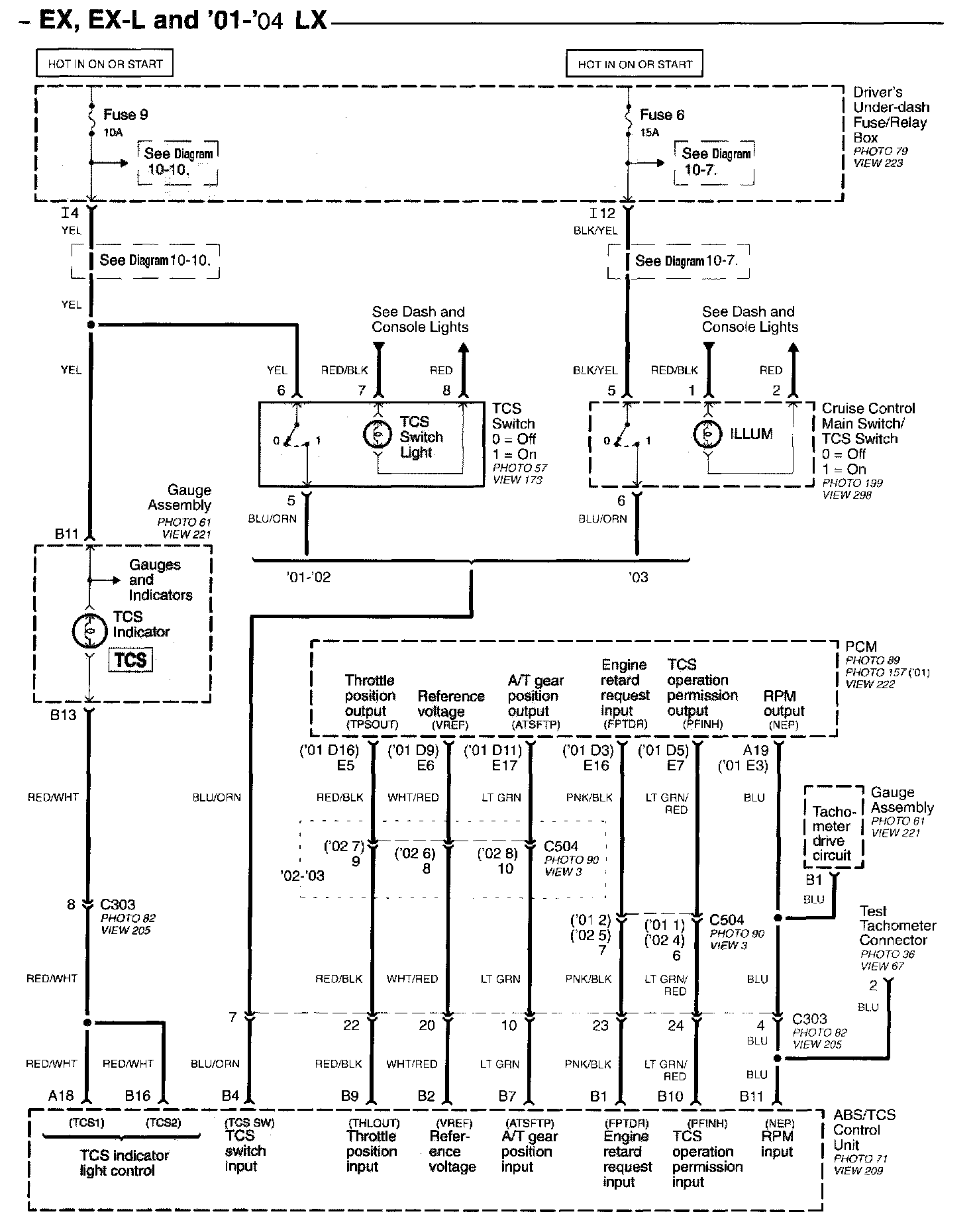

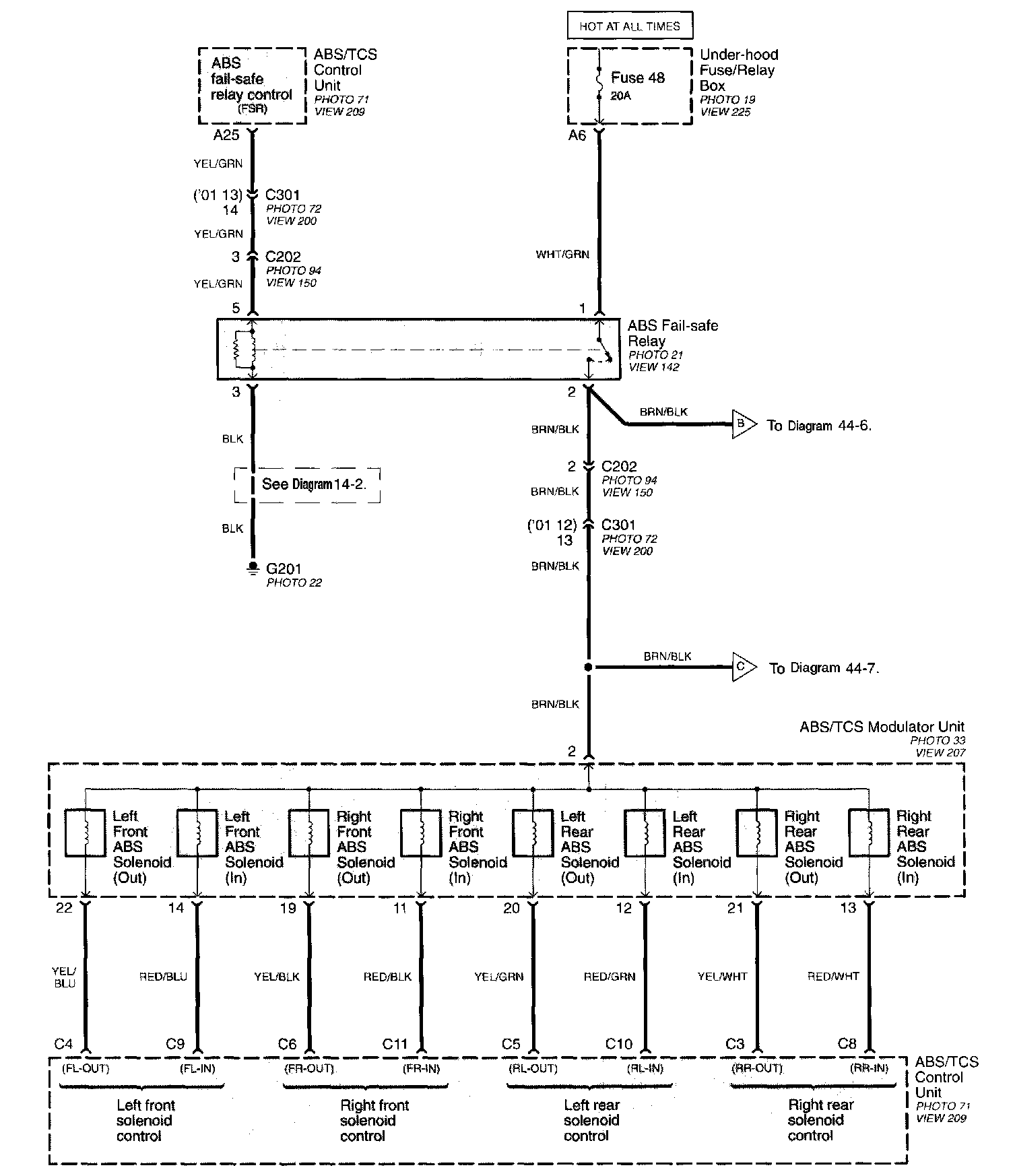

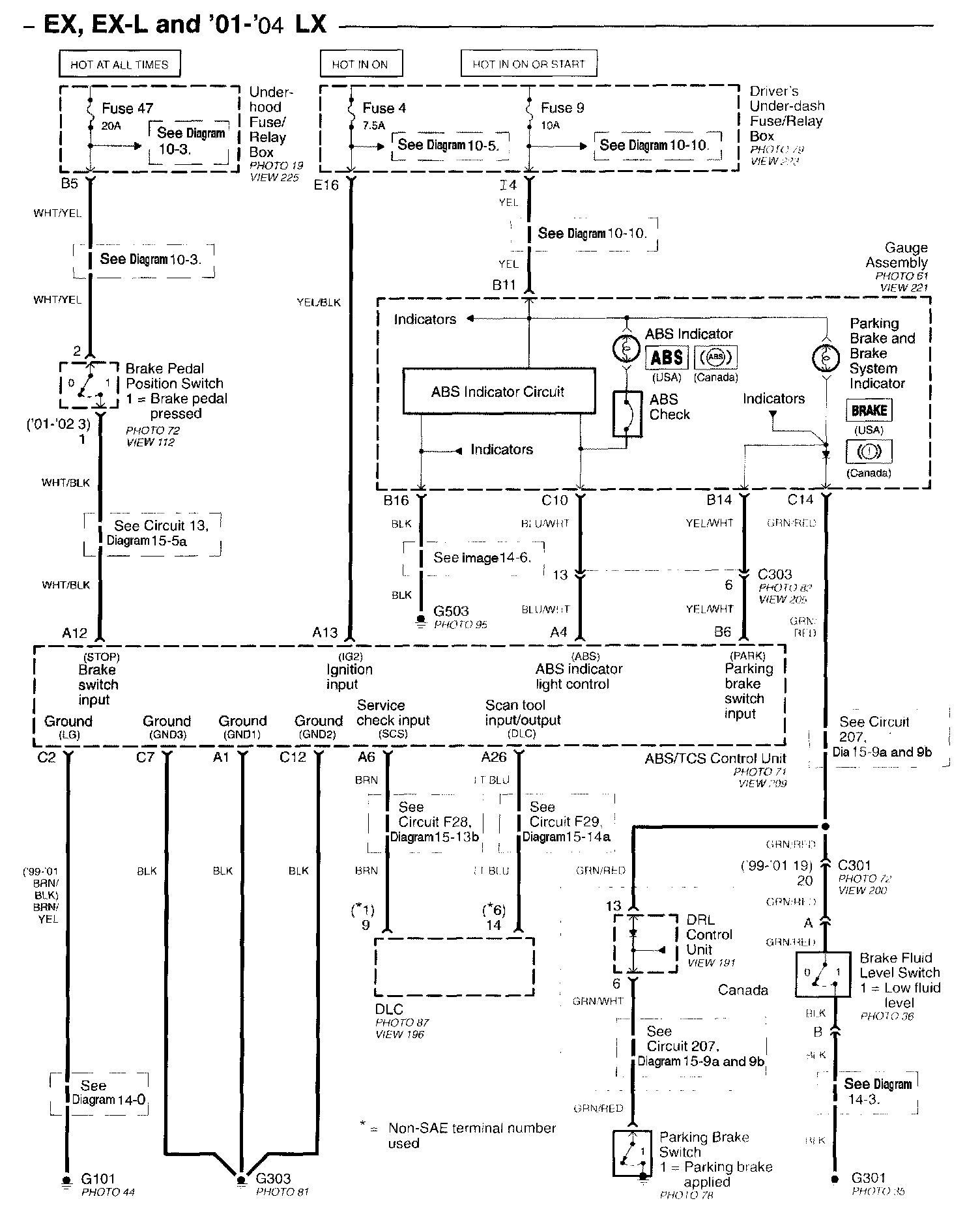

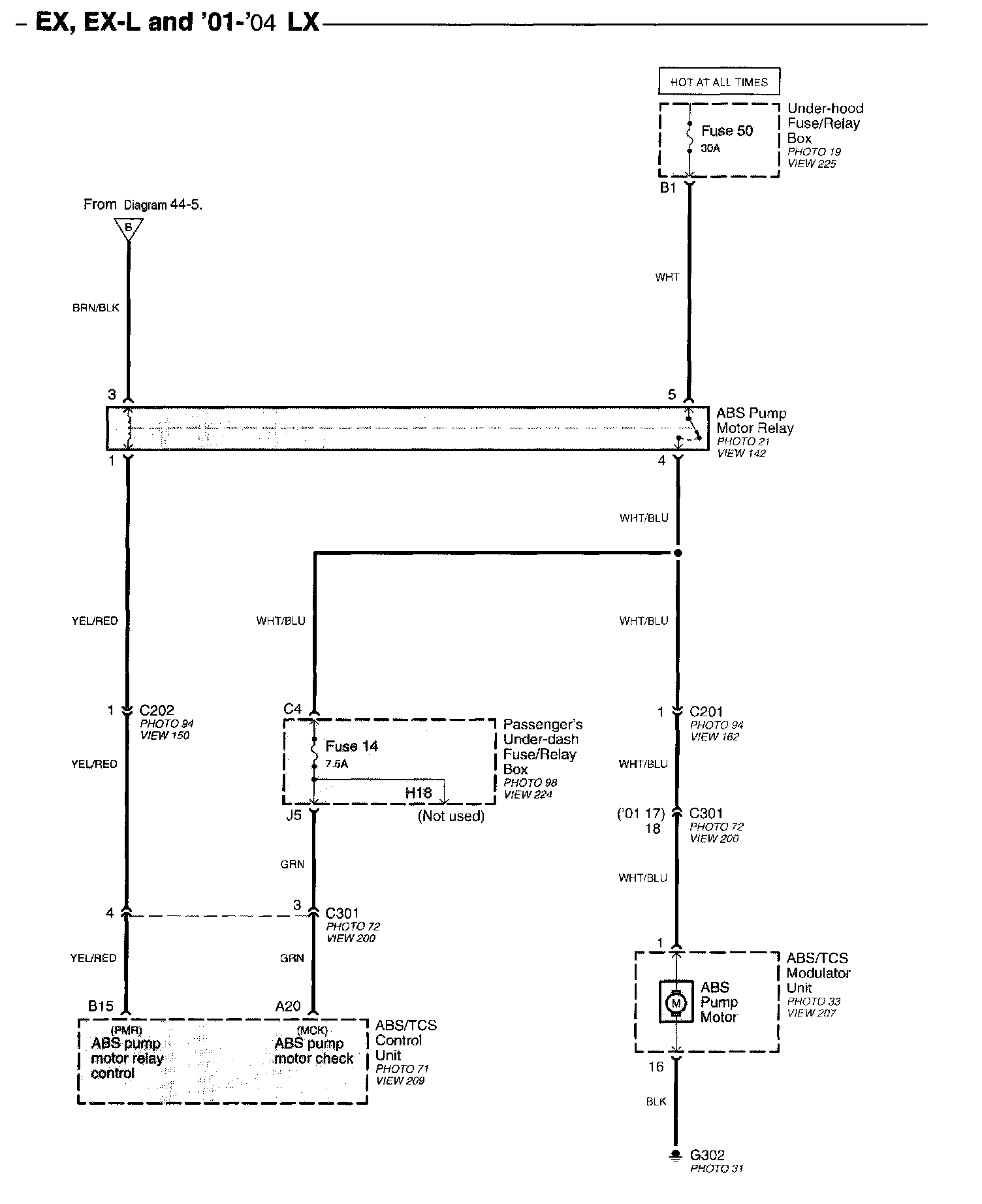

Diagram 44-4 (EX, EX-L And 01-04 LX):
Diagram 44-5 (EX, EX-L And 01-04 LX):
Diagram 44-6 ( EX, EX-L And 01-04 LX):
Diagram 44-7 ( EX, EX-L And 01-04 LX):
Diagram 44-8 ( EX, EX-L And 01-04 LX):
Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number
Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at Locations by Photo Number. Locations By Photo Number
Connector Views: Connector terminal views (references to VIEWS) referred to within these diagrams can be found at Connector Views by View Number. Connector Views By View Number
