Water Pump: Service and Repair
Water Pump Replacement 1.
Remove the
timing belt.
2.
Remove the
timing belt tensioner.
3.

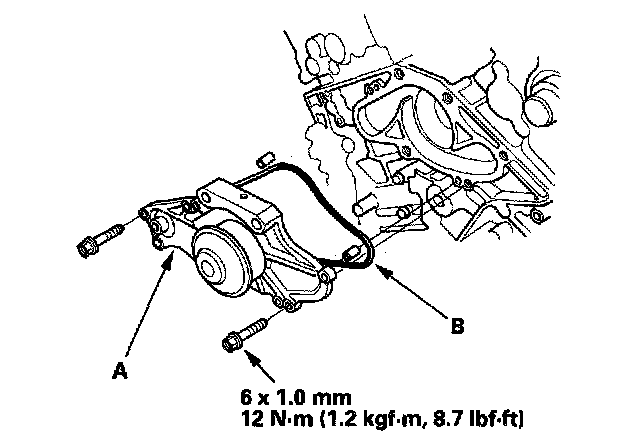

Remove the water pump (A) by removing five bolts.
4.
Inspect, repair and clean the O-ring groove and mating surface on the cylinder block.
5.
Install the water pump with a new O-ring (B) in the reverse order of removal.
6.
Clean up any spilled engine coolant.
