Tail Lamp: Service and Repair

Taillight Replacement

Taillights:




1. Remove the two mounting bolts (A), then pull out the taillight (B).
2. Disconnect the connector (C) from the taillight
3. Install the taillight, and note these items:
- Inspect the gasket; replace it if it is distorted or stays compressed.
- After installing the taillight, run water over it to make sure it does not leak.

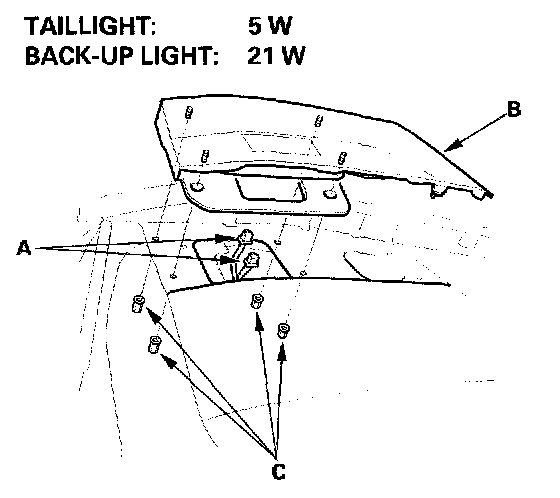

Inner Taillights:

1. Remove the tailgate trim panel.




2. Disconnect the connectors (A) from the taillight (B).
3. Remove the four mounting nuts (C), then pull out the inner taillight.
4. Install the taillight, and note these items:
- Inspect the gasket; replace it if it is distorted or stays compressed.
- After installing the taillight, run water over it to make sure it dose not leak.
