Rear Door Window Motor: Testing and Inspection
Rear Window Motor Test 1.
Remove the side
trim panel.
2.

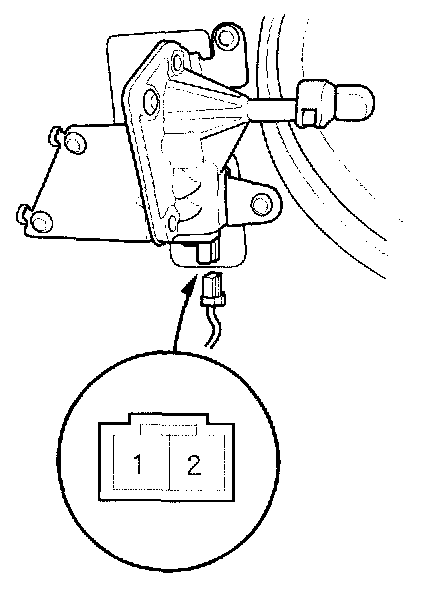

Disconnect the 2P connector from the rear window motor.
3.

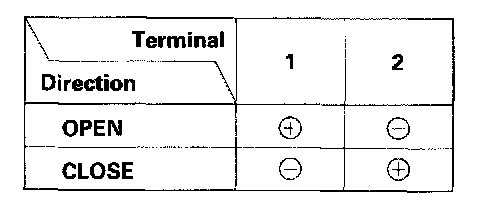

Check window motor operation by connecting power and ground according to the table. When the motor stops running, disconnect one lead immediately.
4.
If the motor does not run or fails to run smoothly, replace it.
