Control Assembly: Service and Repair

Climate Control Unit Removal and Installation

1. Remove the center panel.

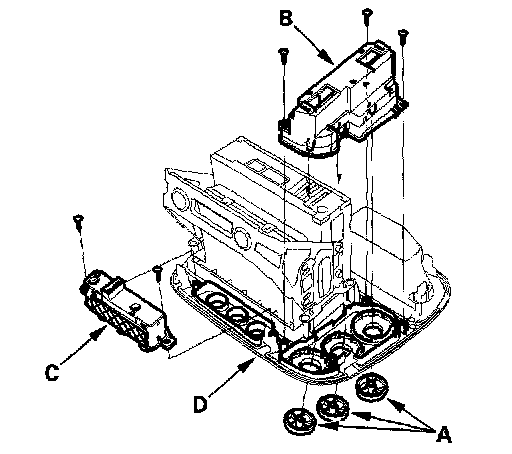

2. Remove the dials (A), then remove the self-tapping screws, the climate control unit (B), and the push switch assembly (C) from the center panel (D).
3. Install the control unit in the reverse order of removal. After installation, operate the control unit and the push switch controls to see whether they works properly.
4. Run the self-diagnosis function to confirm that there are no problems in the system.
