Positive Crankcase Ventilation: Service and Repair

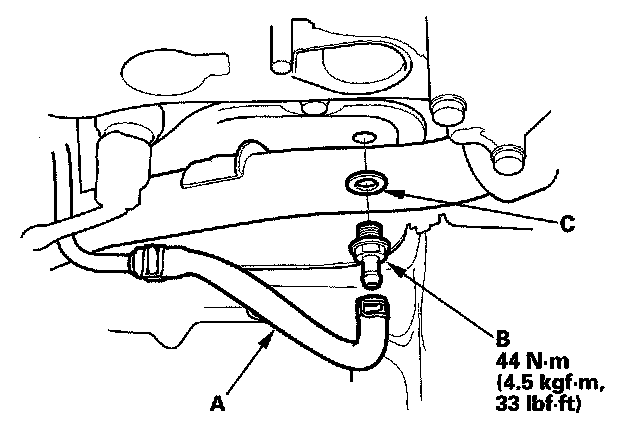

PCV Valve Replacement 1.
Remove the intake manifold.
2.
Disconnect the
PCV hose (A), then unscrew the PCV valve (B), and remove it.
3.
Install the valve in the reverse order of removal with a new washer (C).
