Crankshaft Pulley

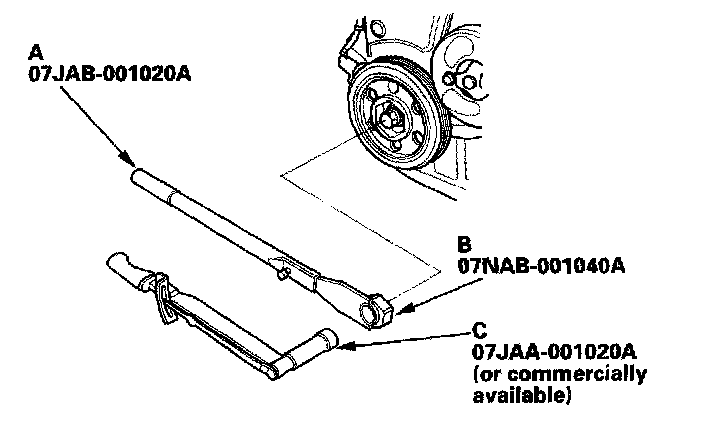

- Install the crankshaft pulley, and hold the pulley with handle (A) and holder attachment (B).
- Tighten the bolt to 37 N.m (3.8 kgf.m, 27 lbf.ft) with a torque wrench and 19 mm socket (C). Do not use an impact wrench. If the pulley bolt or crankshaft are new, tighten the bolt to 177 N.m (18.0 kgfm, 130 lbf.ft), then remove the bolt and tighten it to 37 N.m (3.8 kgf.m, 27 lbf.ft).
- Tighten the pulley bolt an additional 90°.
