Brake Fluid Pressure Sensor/Switch: Service and Repair

Brake Fluid Pressure Sensor Replacement
For 2005 M/T Model

NOTE: Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.

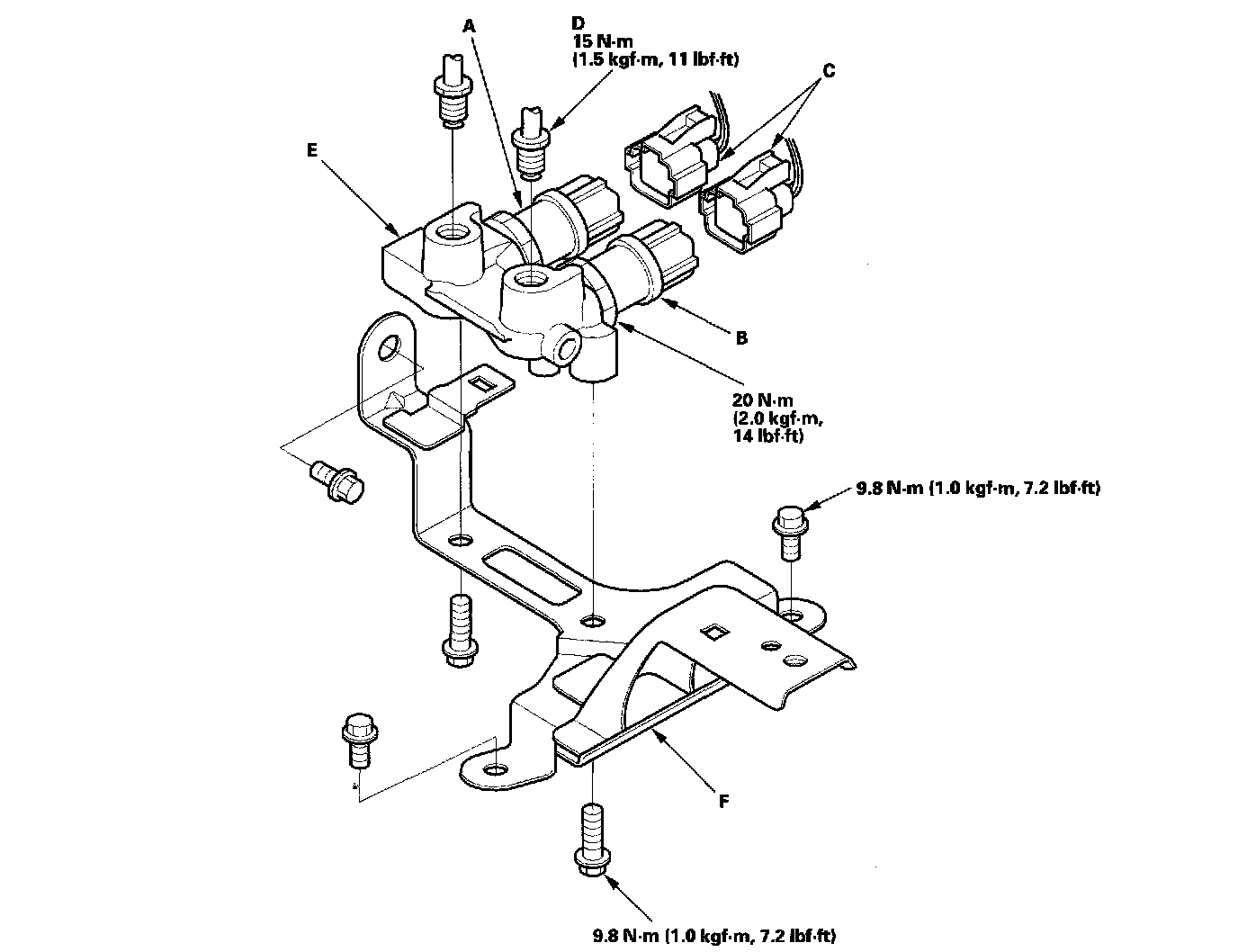

1. Disconnect the brake fluid pressure sensor 3P connectors (C).
2. Disconnect the brake lines (D) from the brake pipe joint
3. Remove the brake pipe joint with the bracket (F) from the body.
4. Separate the brake pipe joint, bracket, brake fluid pressure sensor A and sensor B.
5. Install the brake fluid pressure sensors in the reverse order of removal.
6. Fill the master cylinder reservoir with new brake fluid, and bleed the brake system.
7. Do the following checks: Check the brake line joints for leaks, and tighten if necessary.
