Rear Vision Camera: Service and Repair
Rearview Camera Removal/Installation 1.
Remove the rear license trim.
2.

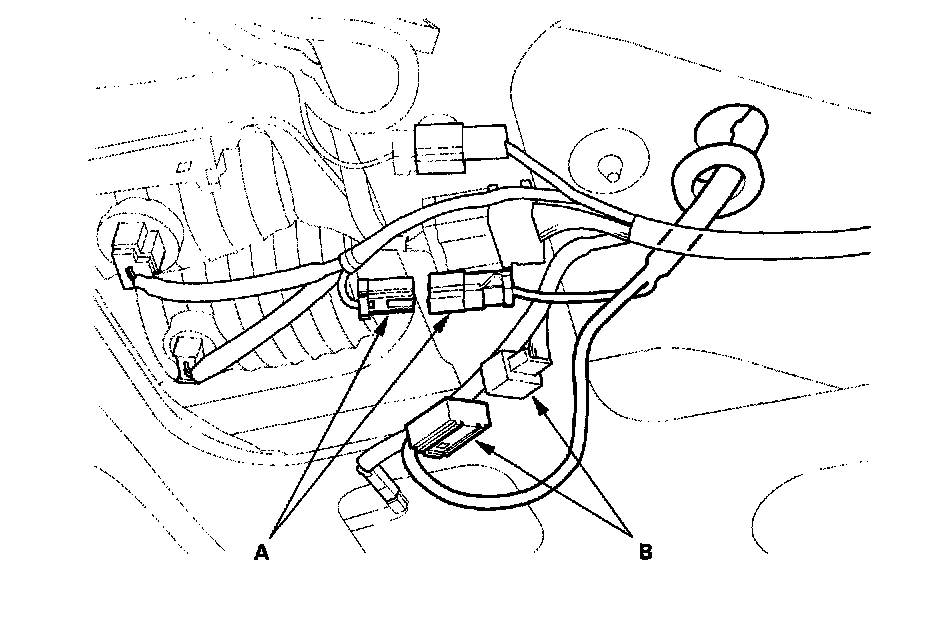

Disconnect the rearview
camera 6P connector (A) and license plate light 2P connector (B).
3.

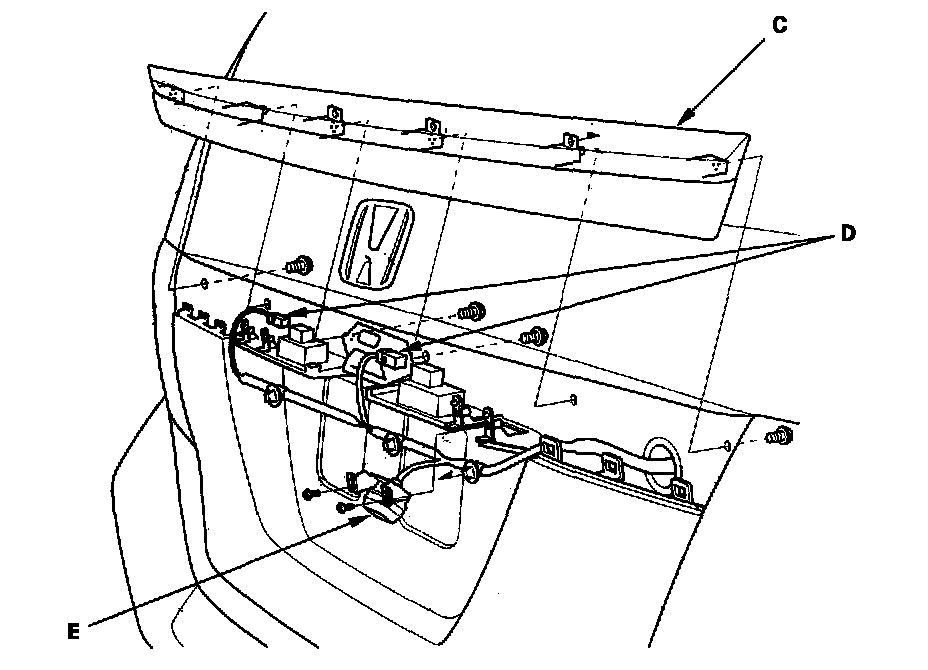

Remove the rear license molding (C).
4.
Disconnect the license plate light connectors (D).
5.
Remove the rearview
camera assembly. (E).
6.
Install in the reverse order of removal.
