Front Grille Cover Replacement

Front Grille Cover Replacement

NOTE: Take care not to scratch the front grille and body.

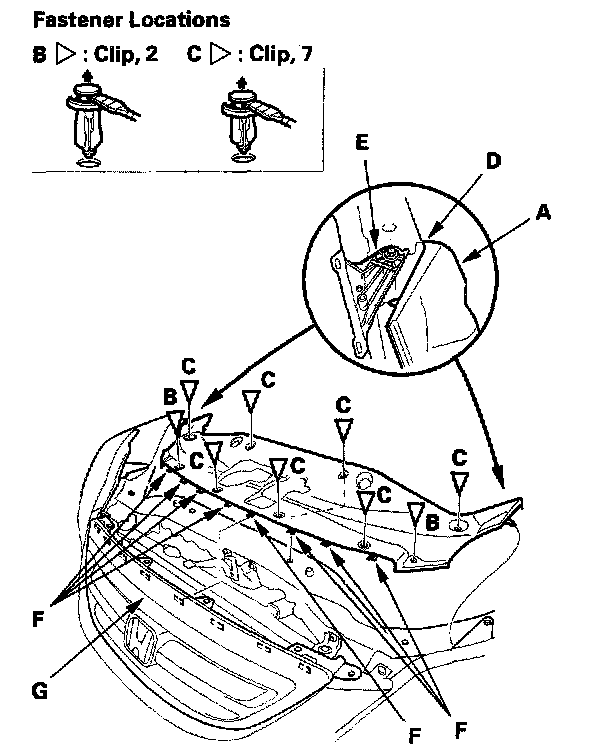

1. Remove the front grille cover (A).
1. Remove the clips (B, C).
2. Release the hooks (D) of the cover from the headlight mounting portions (E) on both sides.
3. Detach the hooks (F) of the cover from the front grille (G).

2. Install the cover in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips and hooks into place securely.
