Third Row Seat Access Cable Replacement
Third Row Seat Access Cable ReplacementNOTE:
- Take care not to tear the seams or damage the seat covers.
- Take care not to kink the cable.
- Put on glove protect your hands.
From Access Lever to Recline Adjuster
1. Remove the second row seat.
2. Remove the seat-back.
3. Remove the seat-back cover and pad from the seat-back frame.
4. Remove the screw and release the hooks (A), then remove the third row seat access cover (B).
5. Remove the screw, then remove the recline inner cover (A).

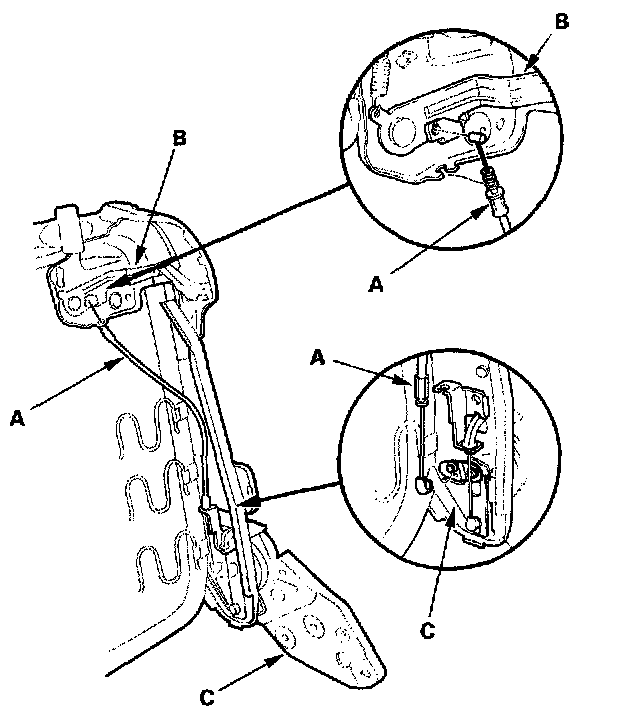

6. Disconnect the third row seat access cable (A) from the access lever (B) and recline adjuster (C), then remove the cable.
7. Install the cable in the reverse order of removal, and make sure the cable is connected securely
From Recline Adjuster to Seat Tracks
1. Remove the second row seat.
2. Remove the outer recline cover.
3. Release the push nut (A), then detach the third row seat access cable (B) from the recline adjuster (C). Pull the cable in through the hole (D) in the recline adjuster.
4. From under the seat cushion, disconnect both ends of the third row seat access cable (A) from both seat tracks (B).
5. Release the wire tie (A) fastening the third row seat access cable (B) to the seat cushion frame spring (C), then remove the cable.
6. Install the cable in the reverse order of removal, and note these items:
- Replace the push nut and wire tie you removed with new ones.
- Make sure the cable is connected securely.
