Drive Belt: Testing and Inspection

Drive Belt Inspection

1. Inspect the belt for cracks and damage. If the belt is cracked or damaged, replace it.

J35A6 engine

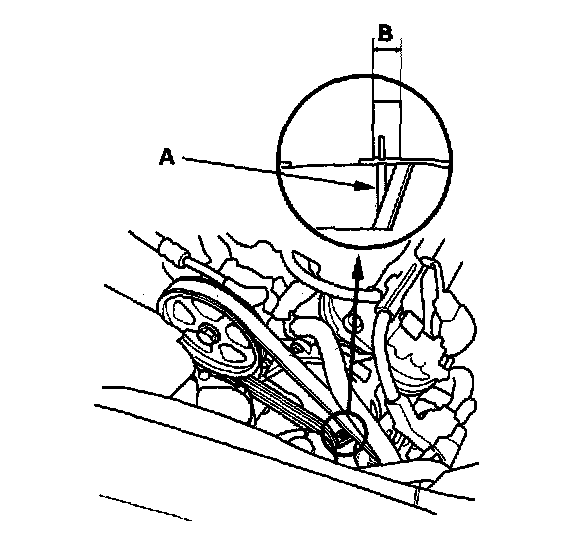

2. Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt.

J35A7 engine




3. Check that the auto-tensioner indicator (A) on the oil pump is not beyond the edge of the indicator rib (B) on the auto-tensioner. If the pointer is beyond the indicator rib, replace the drive belt.
