DVD Player: Service and Repair

DVD Player Unit Removal/Installation

SRS components are located in this area. Review the SRS component locations, and the precautions and procedures before performing repairs or service.

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.

1. Remove the center lower cover.




2. Disconnect the connectors (A) from the climate control unit (B) and DVD player unit (C).
3. Remove the screws, then remove the climate control unit and DVD player unit.

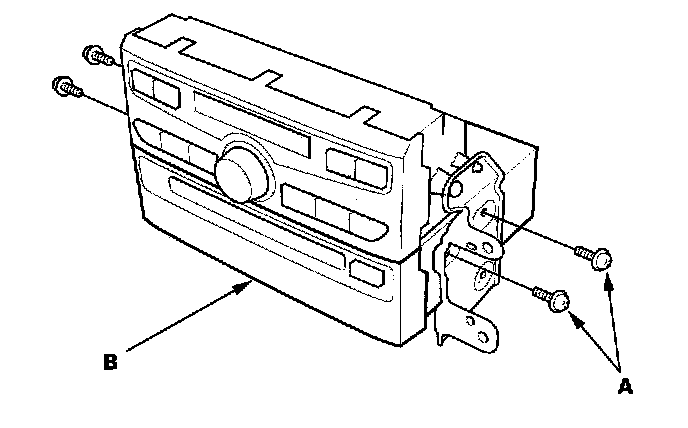

4. Remove the screws (A) and the DVD player unit (B).
5. Install in the reverse order of removal, and make sure the DVD player unit connectors are plugged in properly.
