Third Row Seat

Third Row Seat Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the body or tear the seat covers.
- Put on gloves to protect your hands.

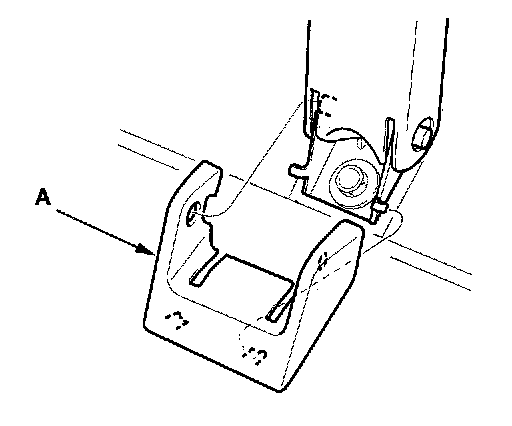

1. Remove the front mounting bolt covers (A) from both front links.

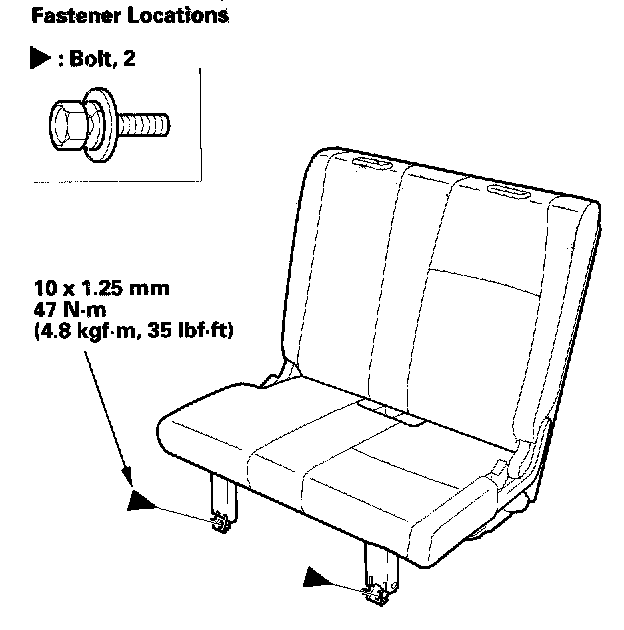

2. Remove the front mounting bolts.




3. On the left third row seat: Release the hooks (A), then remove the seat belt buckle pocket (B), and tuck the left third row seat belt buckle (C) and center third row seat belt detachable anchor (D) under the seat cushion.
4. Lift the seat cushion up.

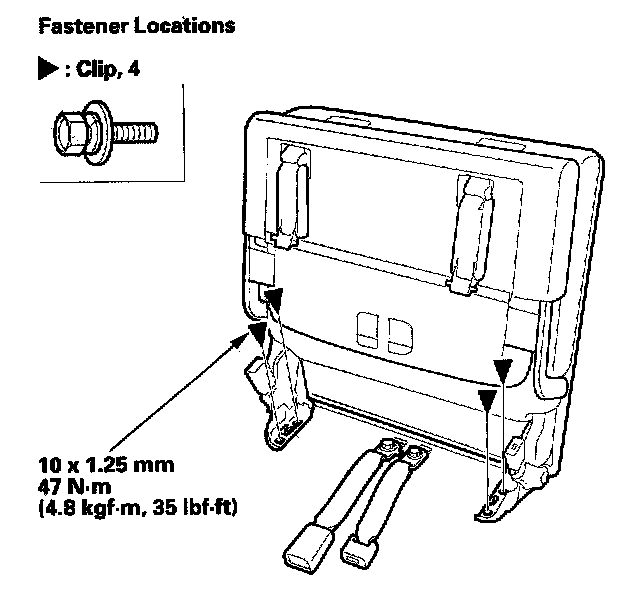

5. Remove the rear mounting bolts while holding the seat cushion.
6. With the help of an assistant, remove the third row seat through the tailgate opening.
7. Install the seat in the reverse order of removal, and apply liquid thread lock to the seat mounting bolts before reinstallation.
