Remote Control: Testing and Inspection
Radio Remote Switch Test1. Remove the instrument panel.

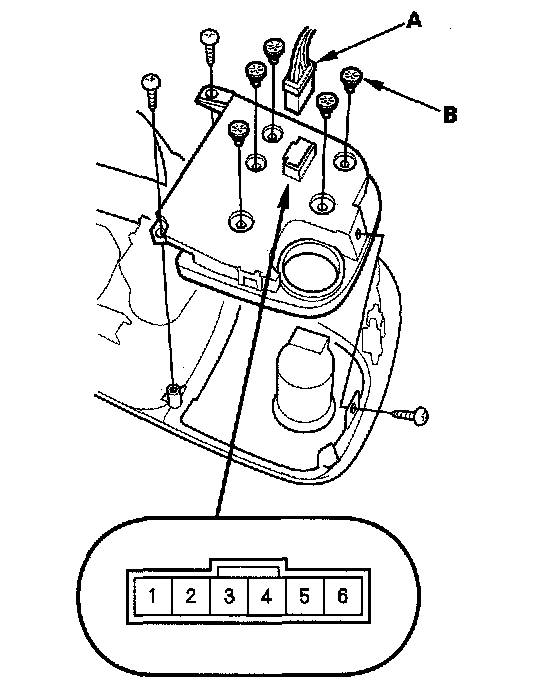

2. Disconnect the 6P connector (A) from the switch.
3. Remove the three mounting screws (B).

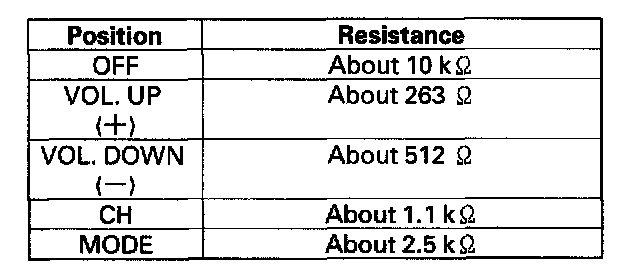

4. Measure resistance between the No. 5 and No. 6 terminals in each switch position according to the table.
If the resistance is not as specified, replace the switch.

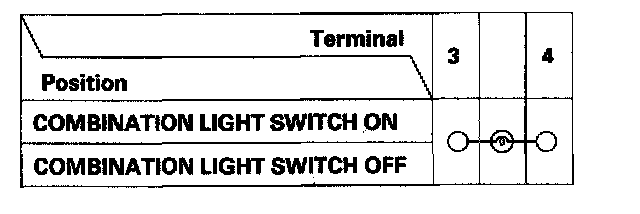

5. Check for continuity between the terminals in each switch position according to the table.
If the continuity is not as specified, replace the illumination bulb(s) (B) or the switch.
6. With the MUTE switch ON, check for continuity between the No. 2 (+) and No. 1 (-) terminals. There should be continuity. If there is no continuity, replace the switch.
