Audio Unit Connector

System Description

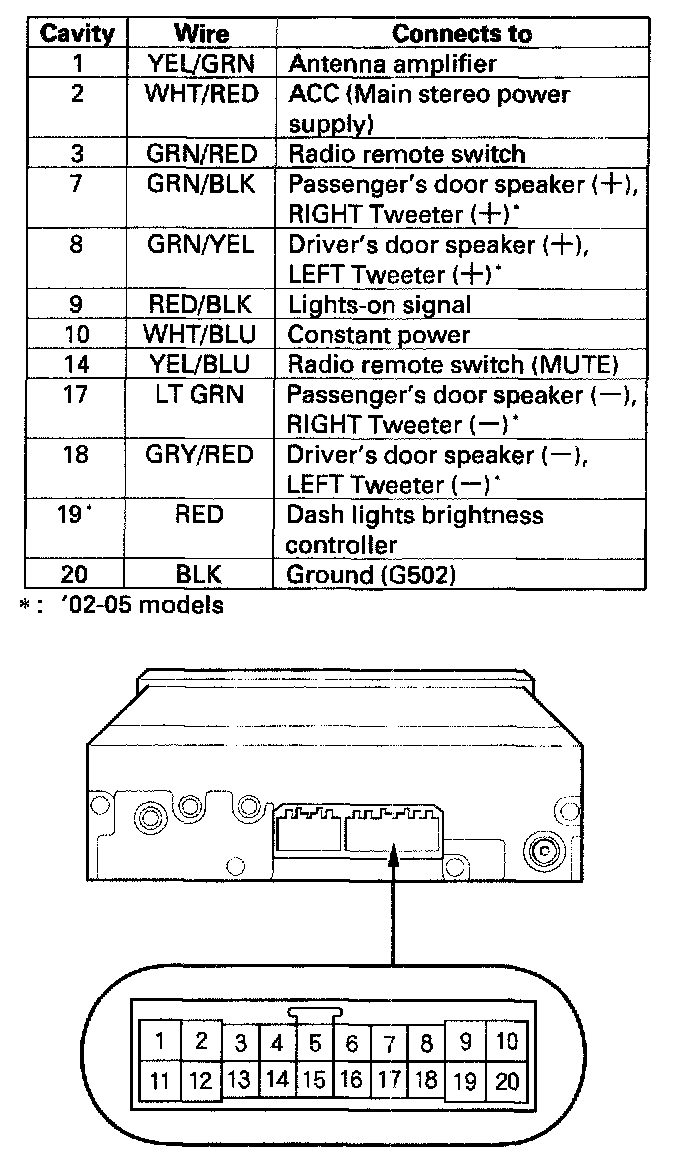

Audio Unit Connector Inputs and Outputs

When replacing an audio unit connector, match the wires to the cavities listed in the above table. Cavities 4, 5, 6, 11, 12, 13, 15 and 16 are not used.
