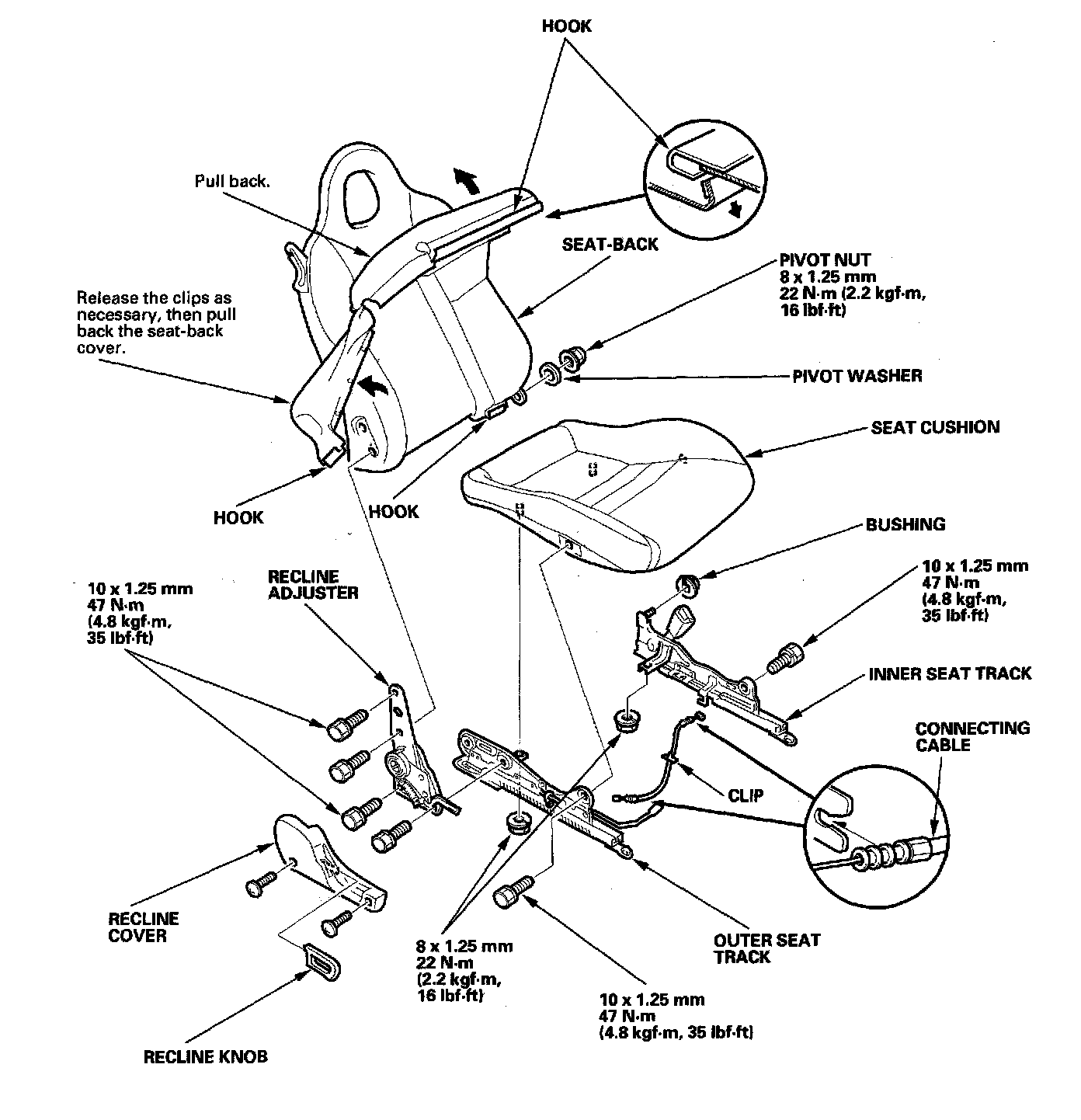

Seat Disassembly/Reassembly - Passenger's
Seat Disassembly/Reassembly - Passenger'sNOTE: -
Make sure the bushing and pivot washer are installed correctly.
-
Apply multipurpose grease to the moving portion of the
seat track.
-
To prevent wrinkles in the seat-back cover, stretch the material evenly over the pad.
-
Adjust the connecting cable as necessary.
-
Make sure the connecting cable is connected properly.
