Towing Information: Service and Repair

Towing

If the vehicle needs to be towed, call a professional towing service. Never tow the vehicle behind another vehicle with just a rope or chain. It is very dangerous

Emergency Towing




Flat-bed Equipment - The operator loads the vehicle on the back of a truck. This is the only recommended way of transporting the S2000

NOTE:
- This vehicle can only be transported on a flat-bed
- Trying to lift or tow the vehicle by the bumpers will cause serious damage. The bumpers are not designed to support the vehicle's weight

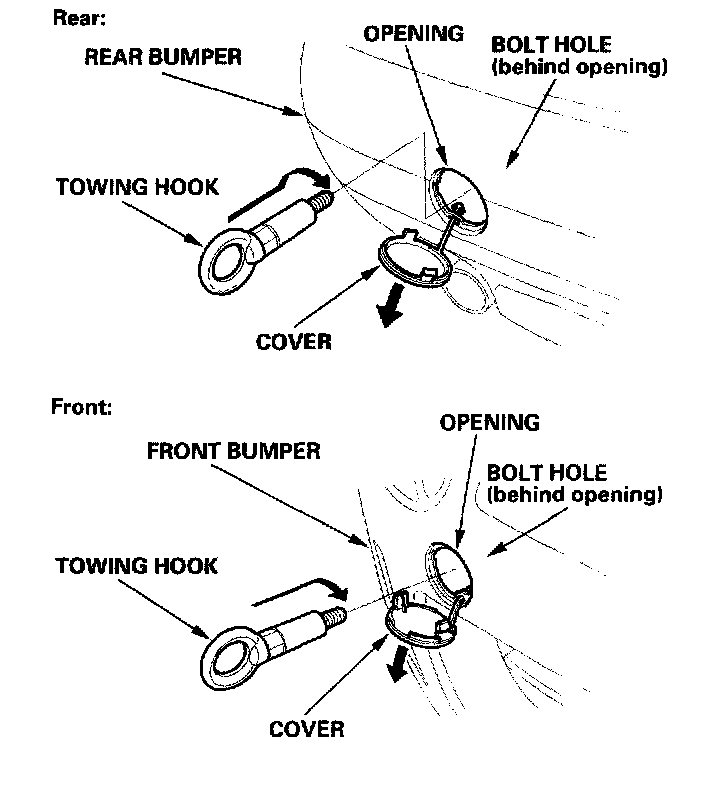

Towing Hook Installation:

NOTE: To avoid damage to the car, use the towing hook for straight, flat ground towing only Do not tow at an angle The towing hook should not be used to tow the vehicle onto a flat-bed. Do not use it as a tie down.

- Remove the cover from the rear or front bumper.
- Install the rear or front towing hook securely into the bolt hole behind the bumper through the opening.

The towing hook is located in the tool kit in the trunk.
