Seat Belt Buckle: Service and Repair

Seat Belt Replacement

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before performing repairs or service.

NOTE: Check the seat belts for damage, and replace them if necessary.

Seat Belt Buckle

1. Remove the seat.

NOTE: To get to the seat belt switch connector, remove the seat cushion from the inner seat track.

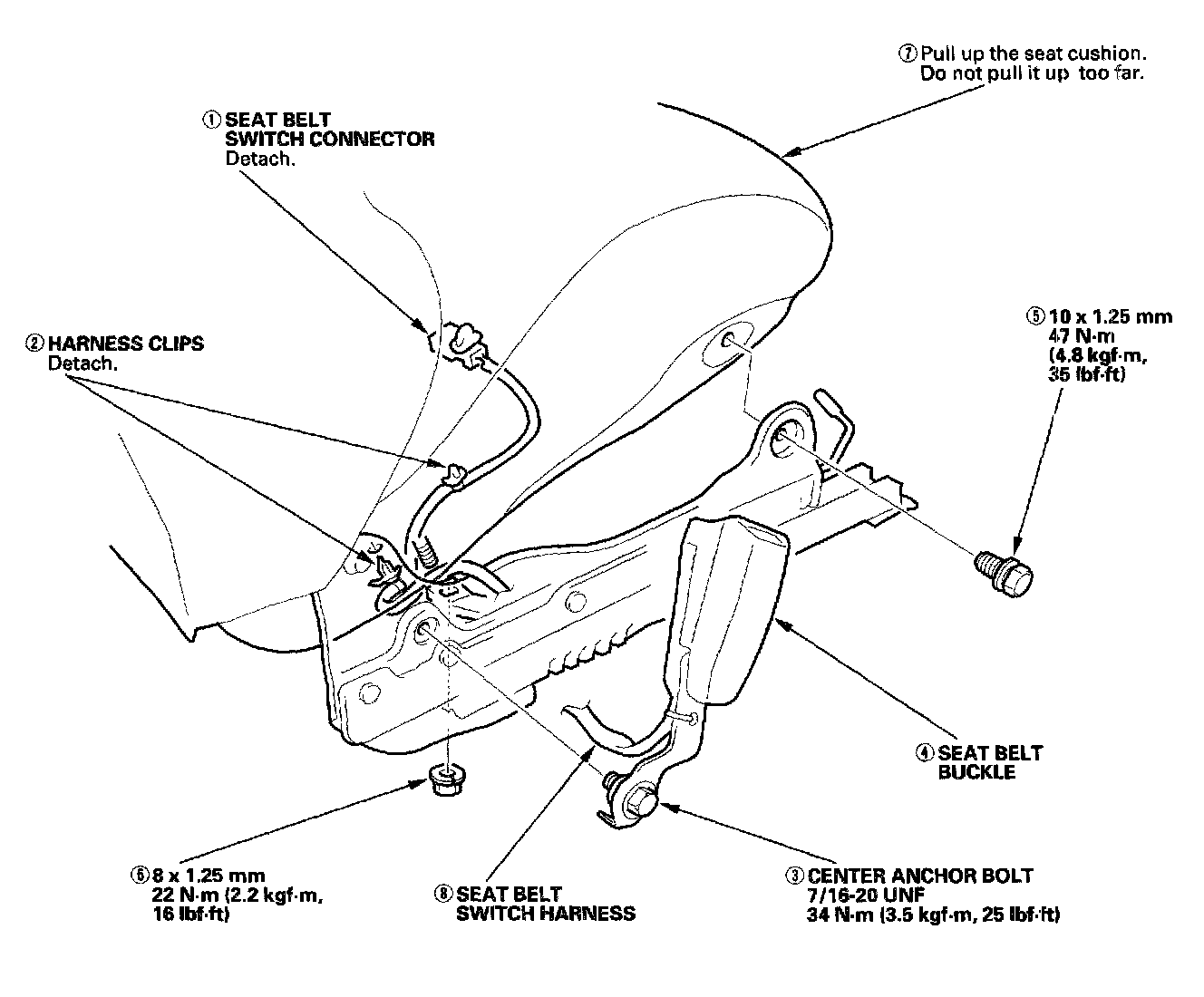

2. Remove the seat belt buckle in the numbered sequence.




3. Install the buckle in the reverse order of removal, and note these items:
- Follow the Center Anchor Bolt Installation diagram carefully when assembling the washers and collar on the center anchor bolt.
- Apply liquid thread lock to the center anchor bolt before reinstallation.
- Apply liquid thread lock to the seat mounting bolts before reinstallation.










Anchor Bolt Installation
