Harmonic Balancer - Crankshaft Pulley
Crankshaft Pulley Install the crankshaft pulley, and tighten the bolt to 245 Nm (25.0 kgf-m, 181 ft. lbs.). Do not use an impact wrench.

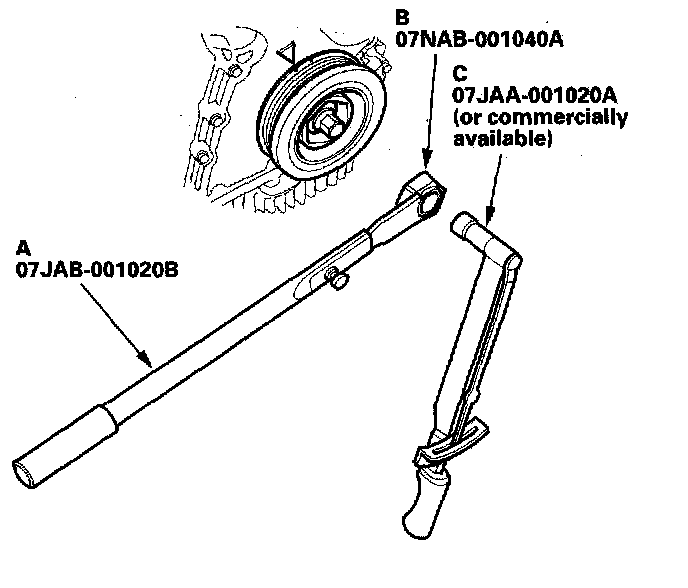

1 Hold the Pulley with the holder handle (A) and holder attachment (B).
2 Tighten the bolt with a torque wrench and heavy duty 19 mm socket (C).
