Engine - Oil Cooler Center Bolt Torque Specification

Engine Oil Cooler Center Bolt Torque Spec

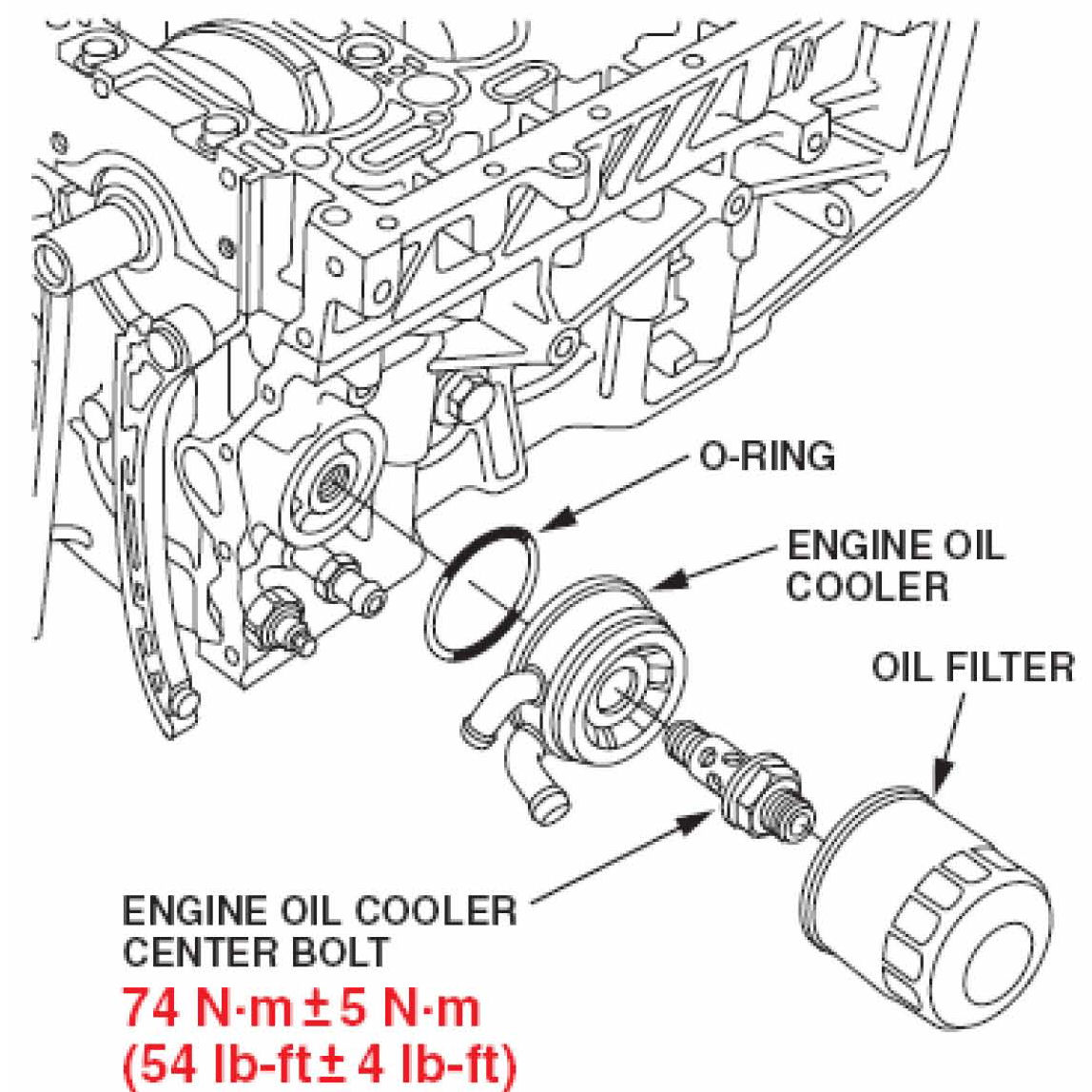

Need the torque spec for the engine oil cooler center bolt in a '00-05 S2000? Although there's a picture of this bolt in the Component Location Index in the '00-05 S2000 S/M and in ISIS, there's no mention anywhere of its torque spec. In fact, there's no mention of how to replace the engine oil cooler.

The upcoming '00-06 S2000 S/M will include an engine oil cooler replacement procedure. For now, jot down this torque spec for the center bolt in your copies of the S/M: 74 N.m + 5 N.m (54 lb-ft + 4 lb-ft).
