Seat Slide Lever Replacement
Seat Slide Lever ReplacementNOTE:
-
Put on gloves to protect your hands.
-
Take care not to scratch the
seat covers or the related parts.
1.
Remove the seat
Seat Removal/Installation.
2.

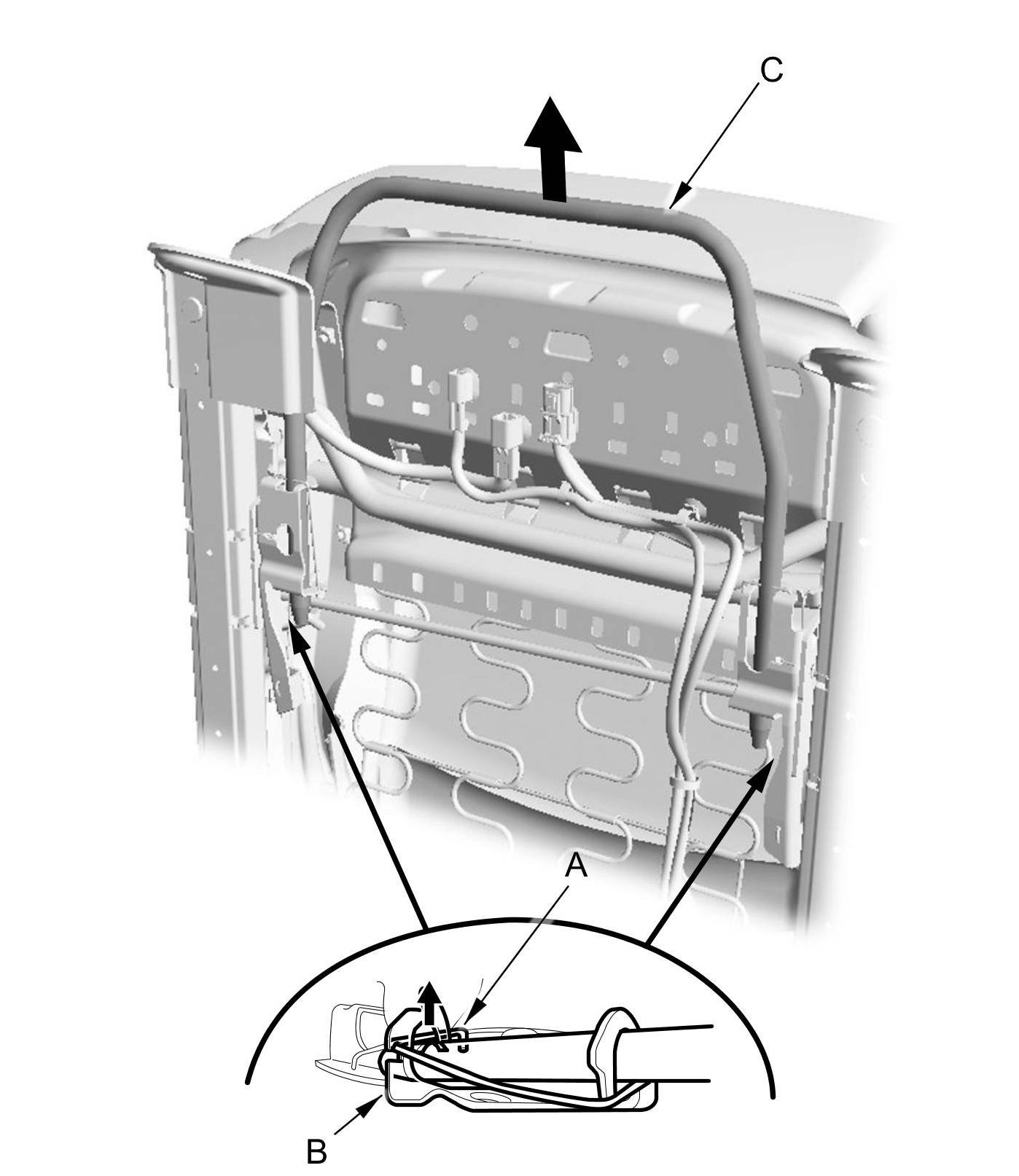

Detach the spring (A) from the lever holder (B), then remove the slide lever (C).
3.
Install the lever in the reverse order of removal, and push the spring into place securely.
