Connector Locations




Fuse/Relay Box Connector Locations

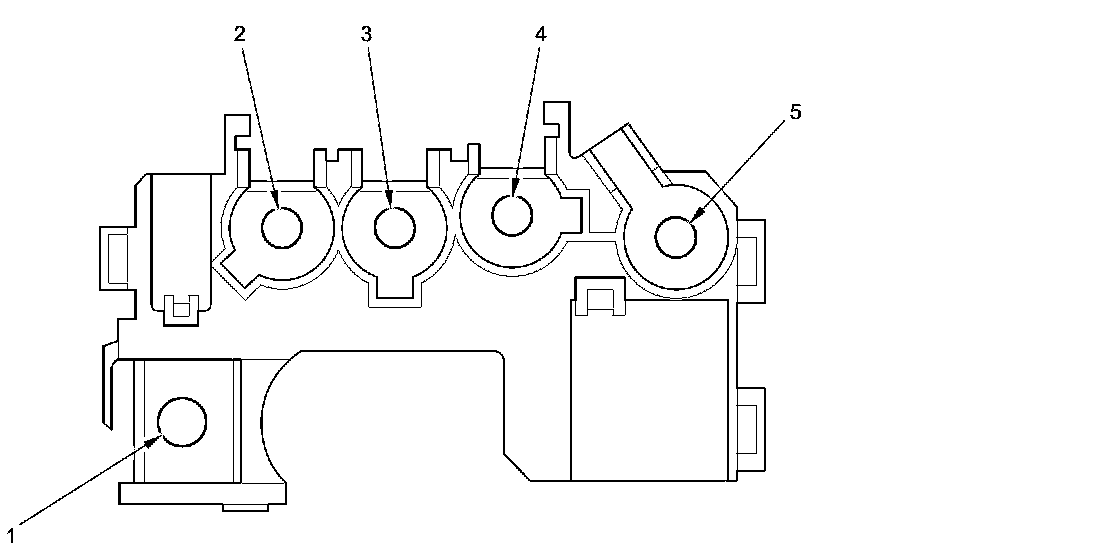

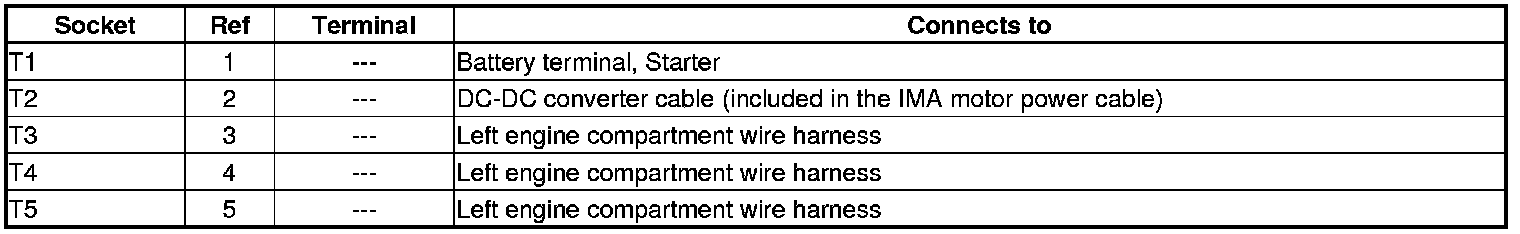

Battery Terminal Fuse Box

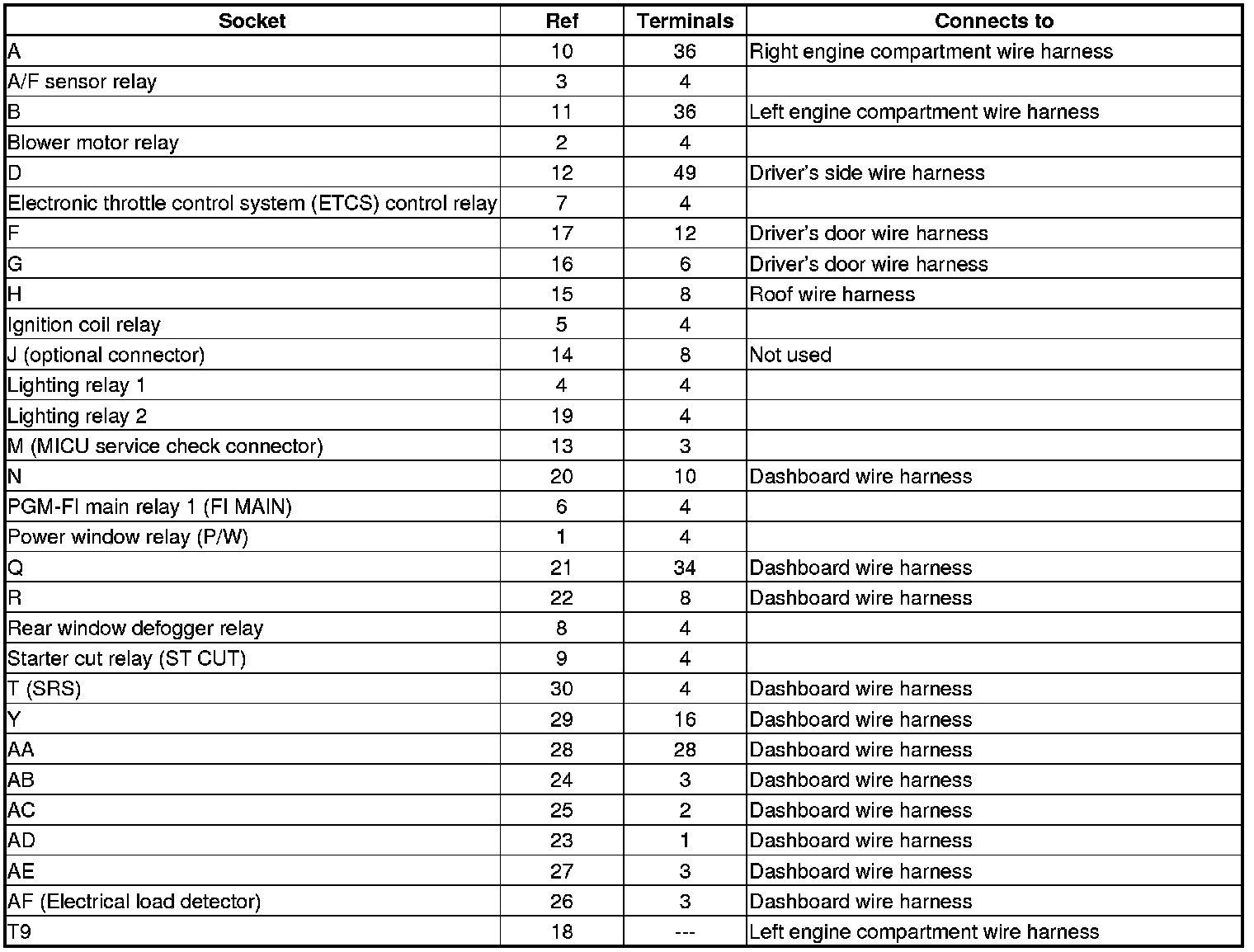

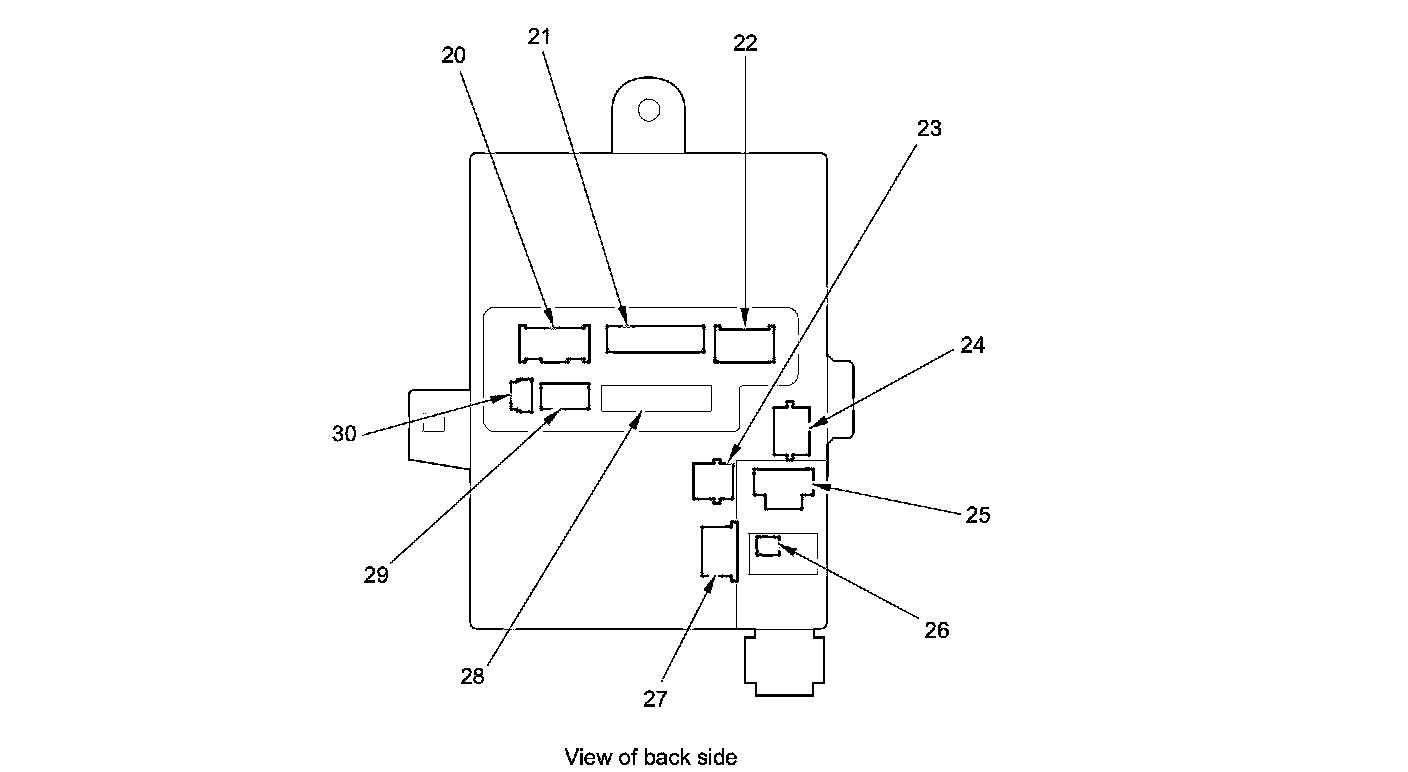

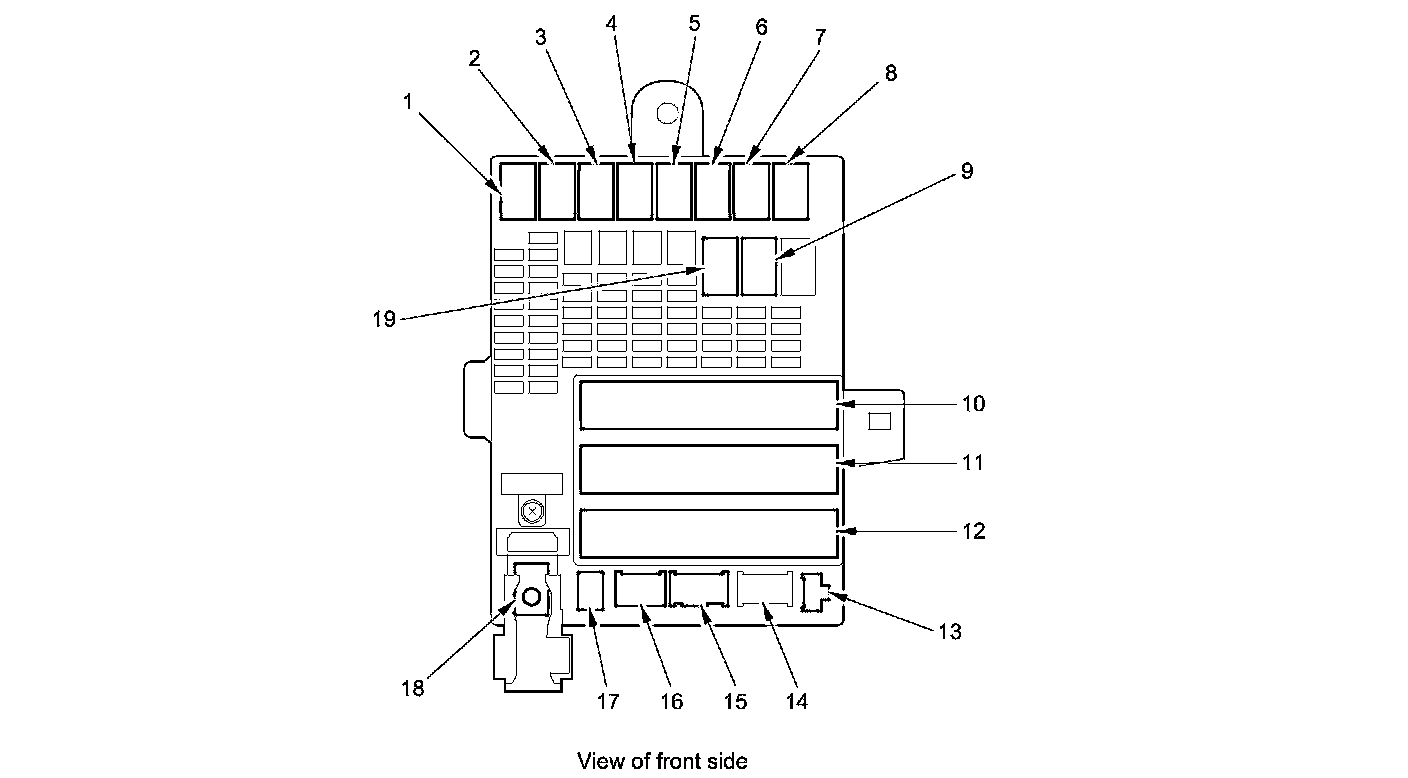

Under-Dash Fuse/Relay Box

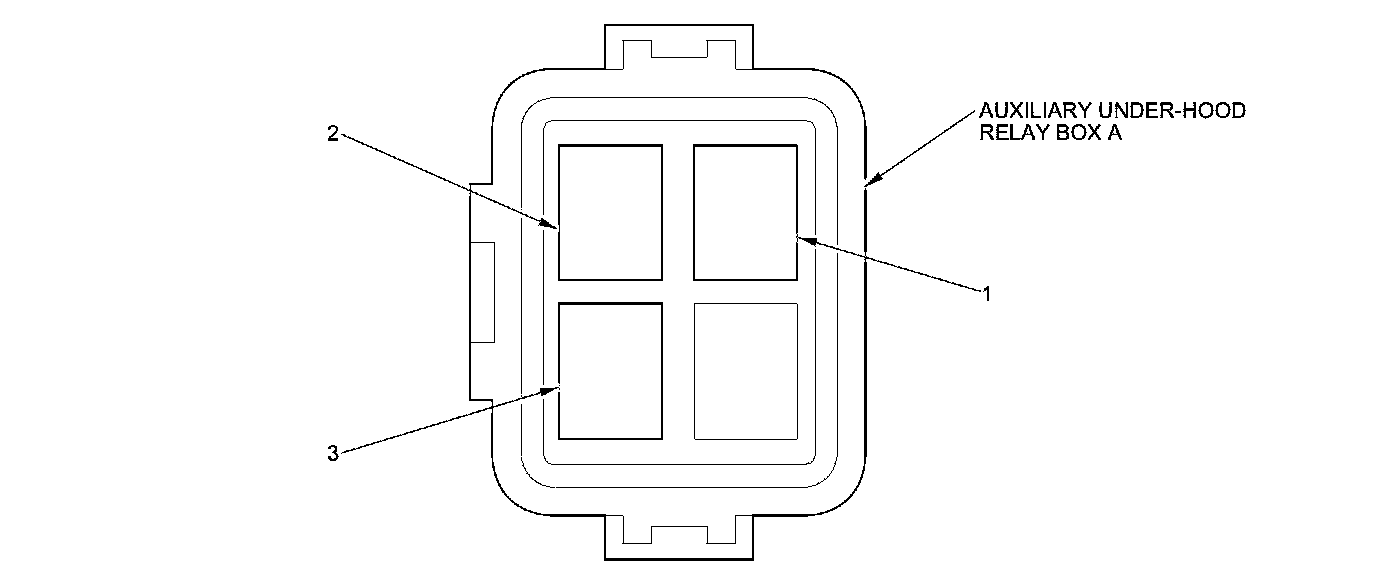

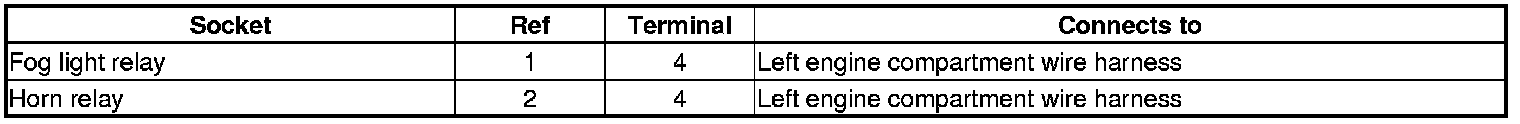

Auxiliary Under-Hood Relay Box A

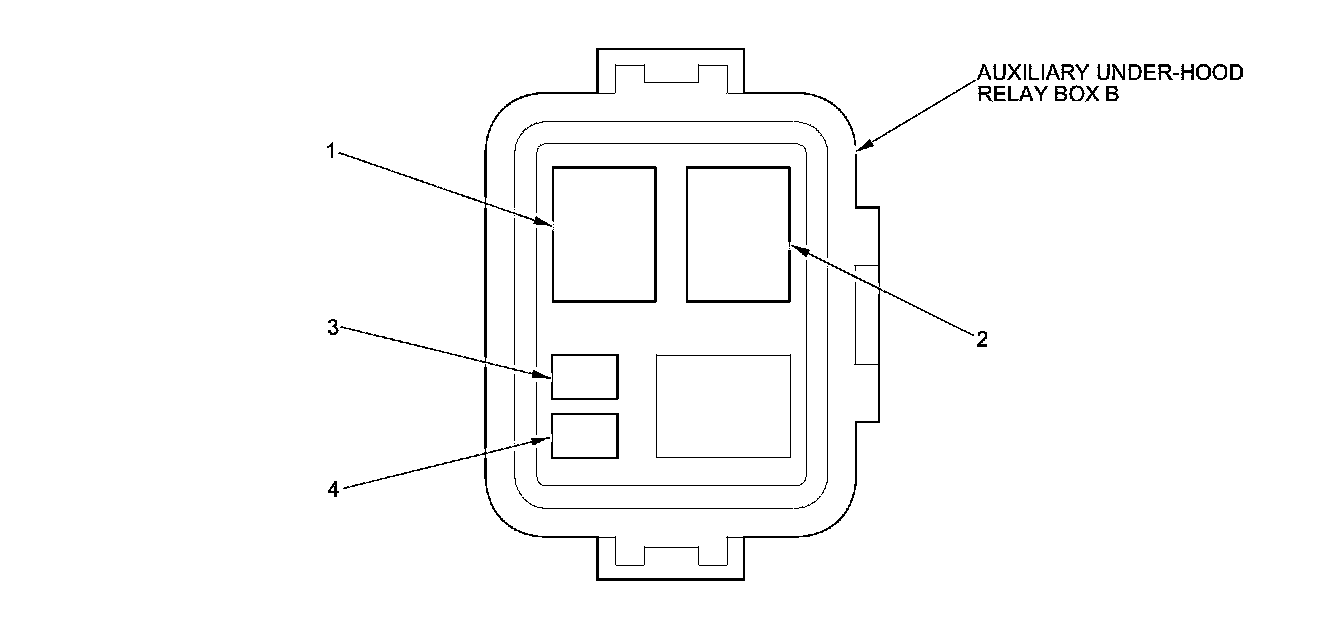

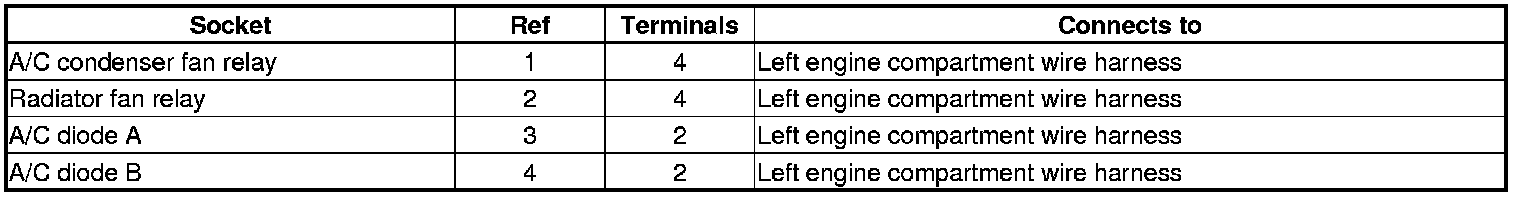

Auxiliary Under-Hood Relay Box B










Under-Dash Relay Holder A

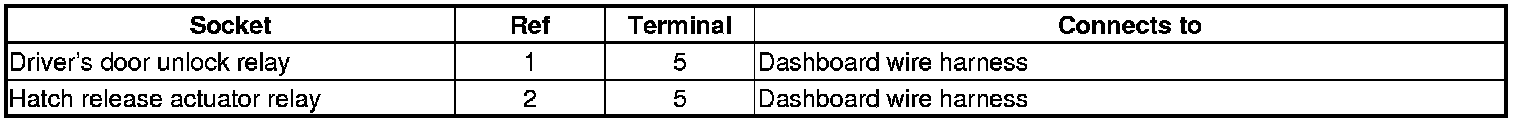

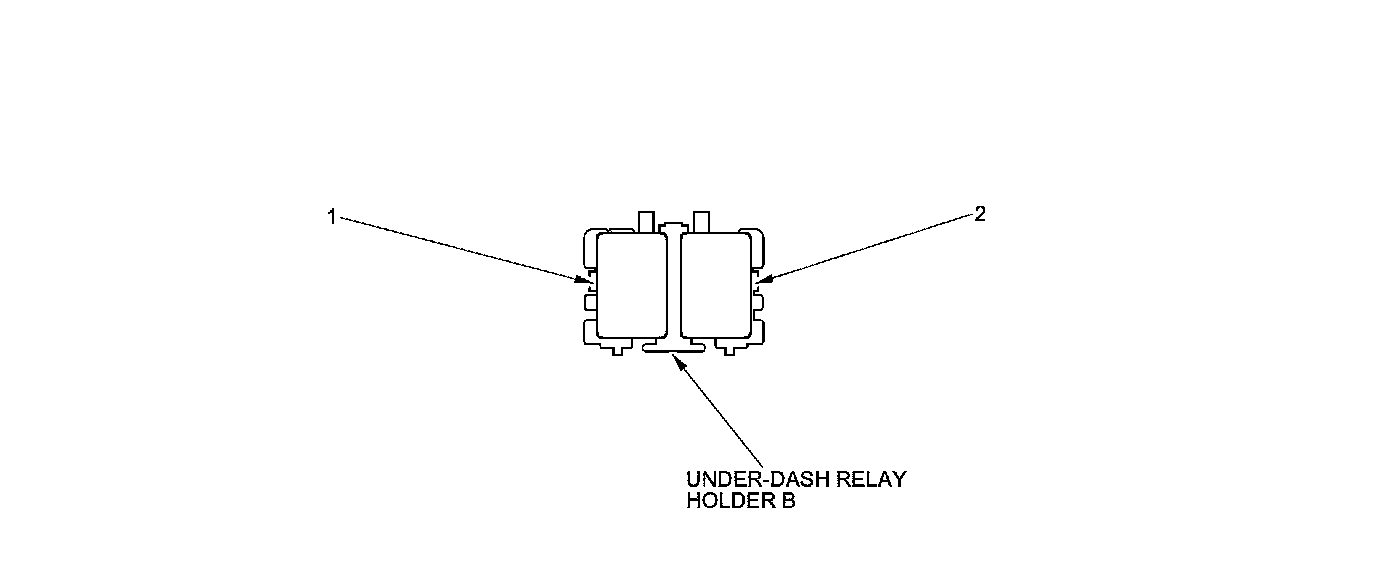

Under-Dash Relay Holder B
