CVT Forward Clutch Clearance Inspection

CVT Forward Clutch Clearance Inspection

Special Tools Required

- Clutch Compressor Attachment 07ZAE-PRP0100

1. Set a dial indicator (A) on the clutch end-plate (B).





2. Zero the dial indicator with the clutch end-plate is lifted up to the snap ring (C).

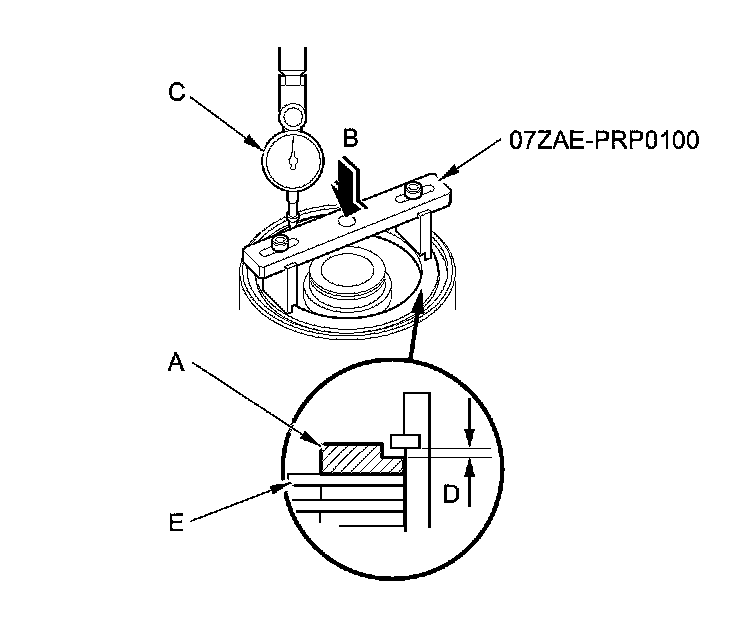

3. Release the clutch end-plate (A) to lower the clutch end-plate, then put the clutch compressor attachment on the clutch end-plate.





4. Press the clutch compressor attachment down with 39 N (4.0 kgf, 8.8 lbf) (B) using a force gauge, and read the dial indicator (C).

5. The dial indicator reads the clearance (D) between the clutch end-plate and the top disc (E). Take measurements in at least three places, and use the average as the actual clearance.

Clearance Between the Clutch End-Plate and the Top Disc
Service Limit: 0.6-0.8 mm (0.024-0.031 in)

6. If the clearance is out of the service limit, replace the forward clutch assembly.
