Tightening Torque And Sequence
Cylinder Head Bolt

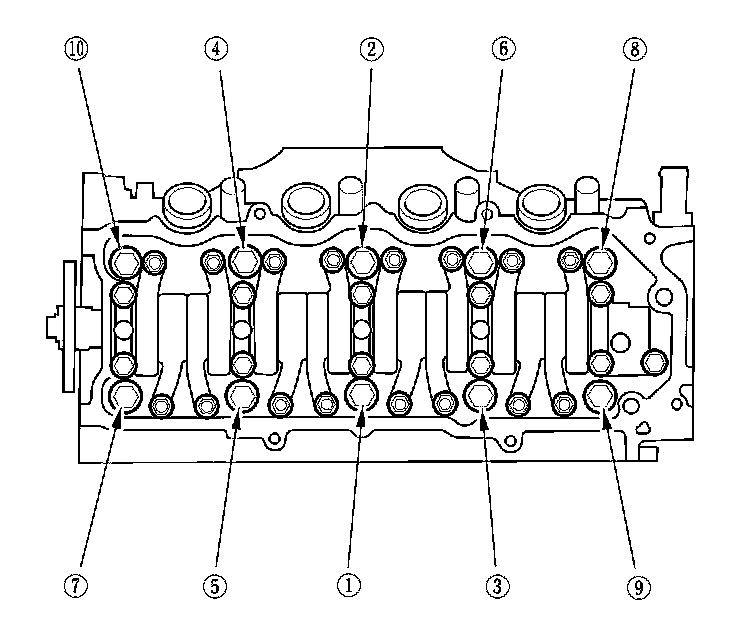

Torque the cylinder head bolts in sequence to
29 N-m (3.0 kgf-m, 22 lbf-ft)
Tighten all cylinder head bolts an additional
130 °.

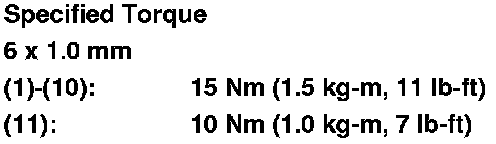

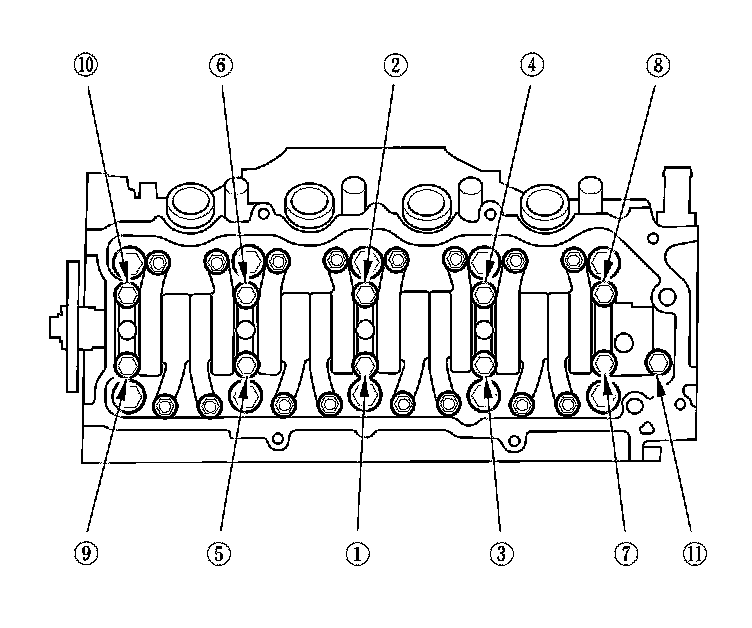

Rocker Arm Assembly InstallationTighten each bolt two turns at a time in sequence.
