Ambient Temperature Sensor / Switch HVAC: Service and Repair
Outside Air Temperature Sensor Replacement 1.
Remove the front bumper
Front Bumper Removal/Installation.
2.

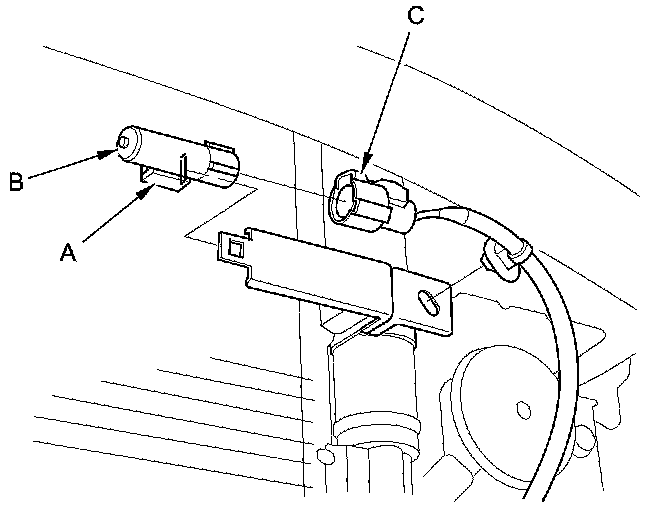

Lift the tab (A) to release the lock, then remove the outside air temperature sensor (B) from the receiver/dryer desiccant bracket. Disconnect the 2P connector (C) from the outside air temperature sensor.
3.
Install the sensor in the reverse order of removal.
