IPU Module Air Duct Removal/Installation
IPU Module Air Duct Removal/Installation 1.
Remove the spare tire lid and the trunk front trim panel
Interior Trim Removal/Installation - Trunk Area.
2.

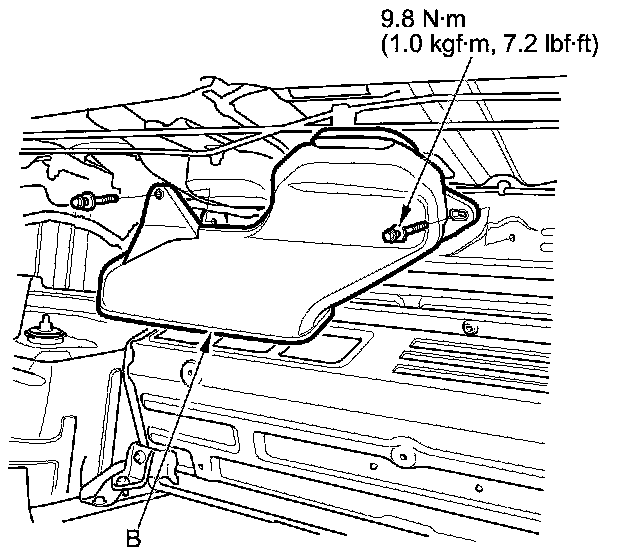

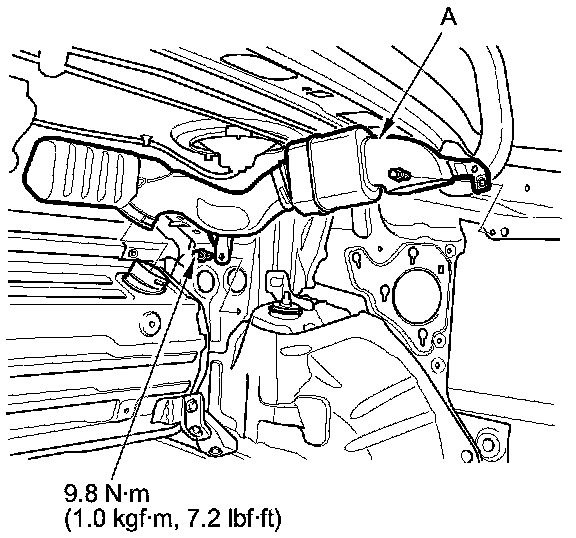

Remove the IPU module air outlet duct (A) and the IPU module air inlet duct (B).
3.
Install the parts in the reverse order of removal.
