Fluid Filter - CVT: Service and Repair

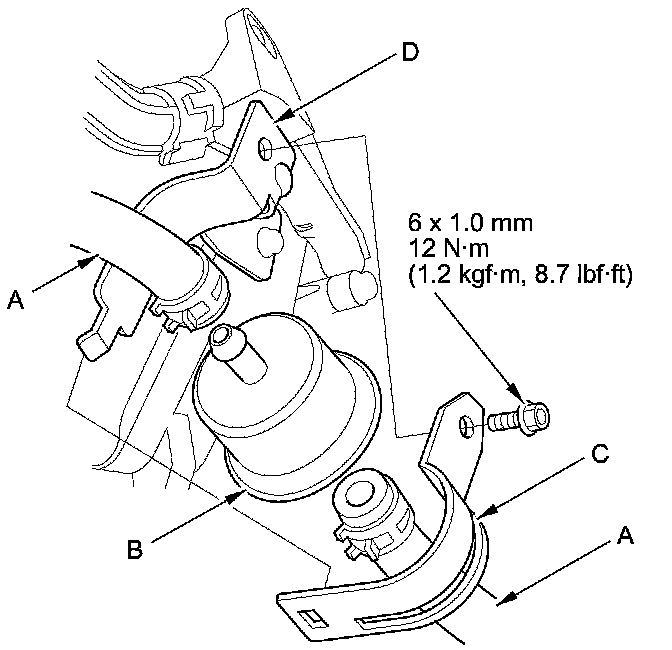

CVTF Filter Replacement 1.
Disconnect the CVTF cooler hoses (A) from the CVTF filter (B).
2.
Remove the bolt securing the CVTF filter holder (C), and remove the CVTF filter.
3.
Connect the CVTF cooler hoses, and secure the hose with the clip
Service and Repair.
4.
Secure the CVTF filter on its bracket (D) with the CVTF filter holder and the bolt.
