Tightening Torque and Sequence




Cylinder Head

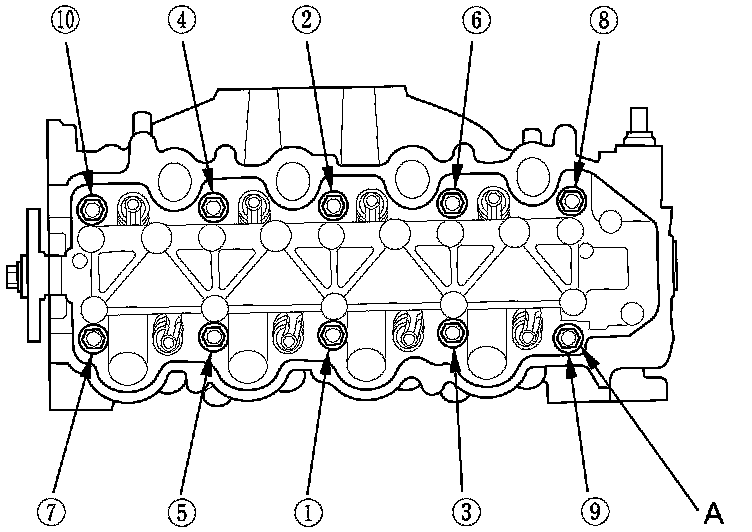

Torque the cylinder head bolts in sequence to 29 Nm (3.0 kg-m, 22 lb-ft)

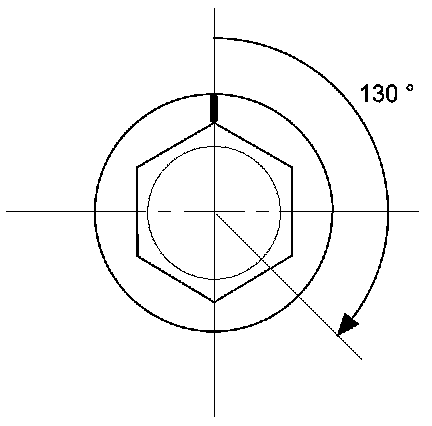

Tighten all cylinder head bolts an additional 130 °

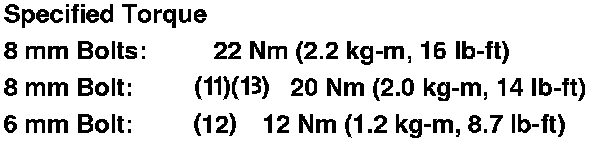

Camshaft Bearing Cap










Camshaft Gear/Sprocket Specifications

Intake Manifold Specifications
