Fuel Rail Pressure Sensor Replacement

Fuel Rail Pressure Sensor Replacement

1. Relieve fuel pressure between the engine and the manual shut-off valve Service and Repair.

2. Remove the cowl cover and the under-cowl panel Service and Repair.

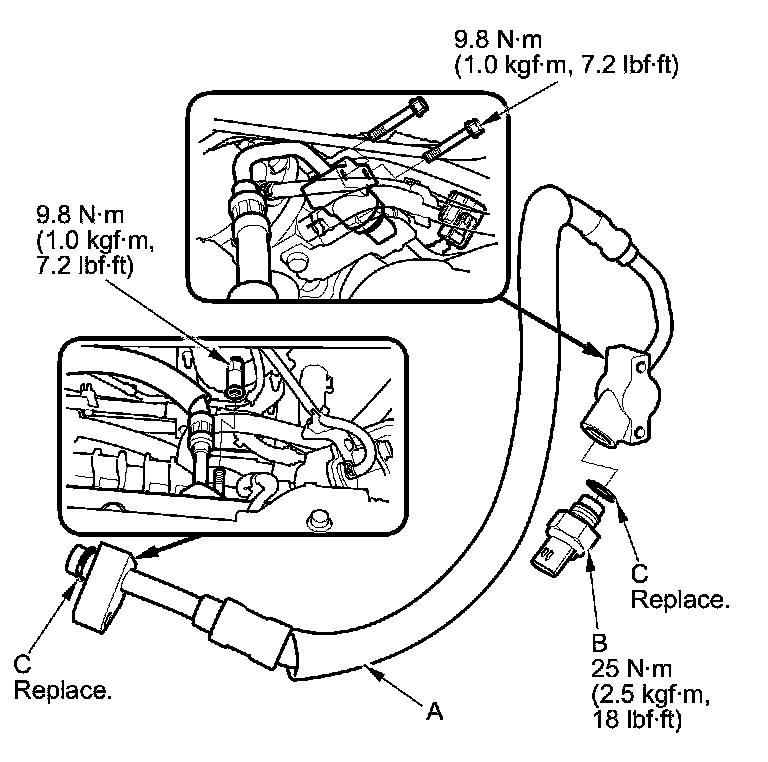

3. Remove the fuel feed hose (A).





4. Remove the fuel rail pressure sensor (B).

5. Apply silicone oil or polyalkyleneglycol (PAG) oil to the new O-rings (C), and carefully install them into their proper positions Service and Repair.

6. Install the parts in the reverse order of removal.

7. Do the leak inspection procedure Testing and Inspection.
