Front Bulkhead Lower Cover Replacement

Front Bulkhead Lower Cover Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the front bumper Front Bumper Removal/Installation.

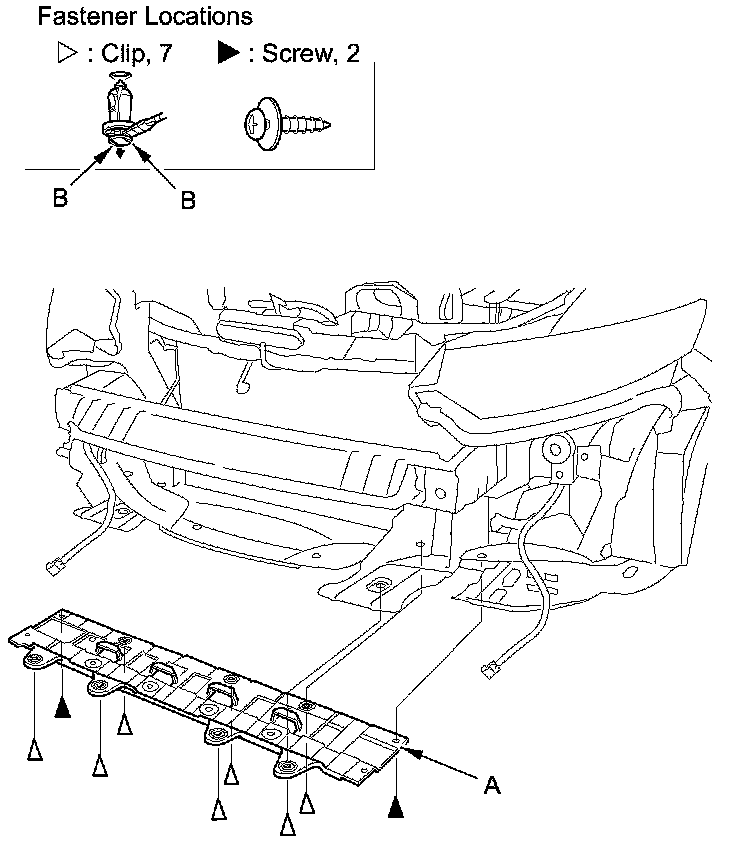

2. Remove the clips and the screws, then remove the front bulkhead lower cover (A).

NOTE: To release the clips, pry up on the center pin at the notch (B).





3. Install the front bulkhead lower cover in the reverse order of removal, and note these items.

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
