Power Mirror Motor: Service and Repair




Power Mirror Actuator Replacement

Removal

1. Remove the power mirror holder, and the mirror housing Mirror Holder Replacement.

2. Disconnect the 2P connector (A) from the side turn signal light (B) (if equipped).





3. Remove the power mirror Power Mirror Replacement.

4. Record the power mirror connector terminals location and the wire harness colors.

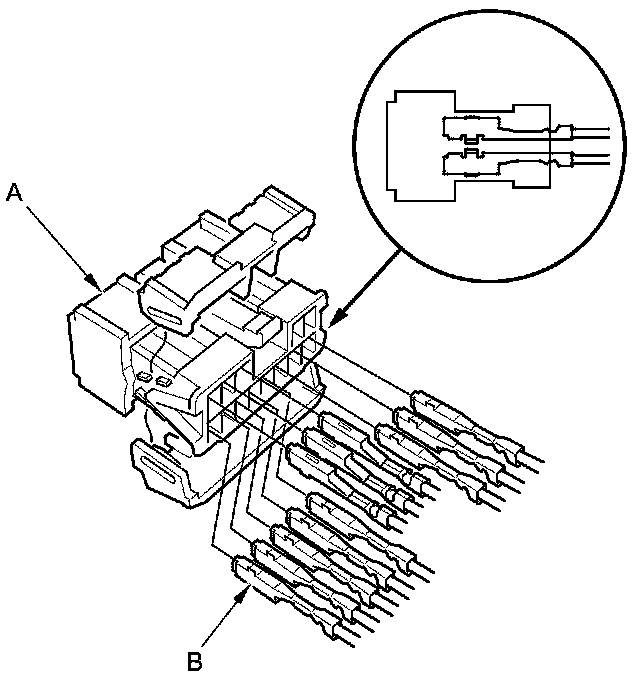

5. Disassemble the power mirror connector (A), and remove the terminals (B) from the connector.

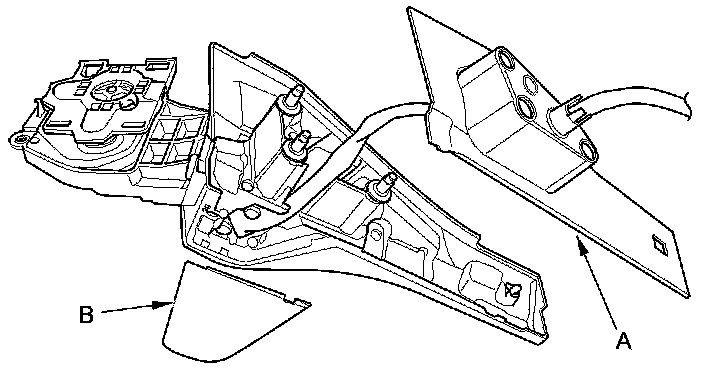

6. Remove the gasket (A) and the cover (B).

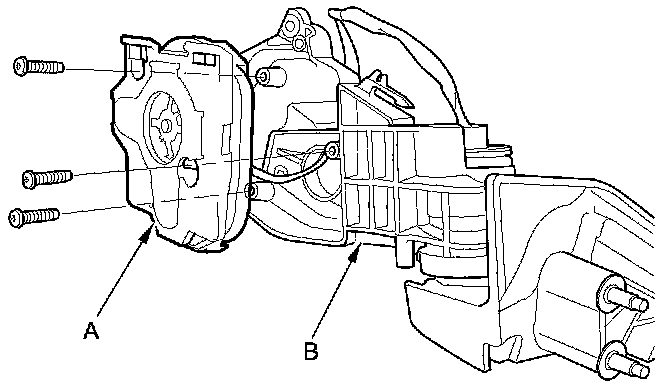

7. Remove the three screws, and separate the power mirror actuator (A) from the housing (B).






Installation

8. Route the wire harness of the new actuator through the hole in the bracket and gasket, then install the parts in the reverse order of removal.

9. Insert the new actuator terminals into the connector in the original arrangement.

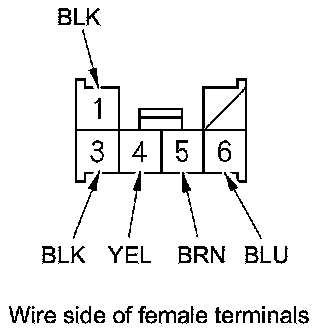

Without side turn signal light

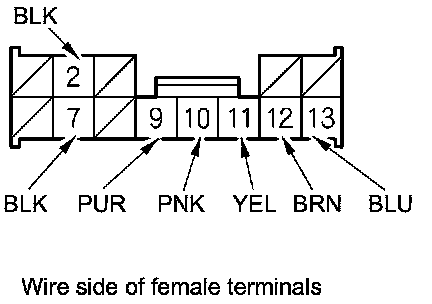

With side turn signal light

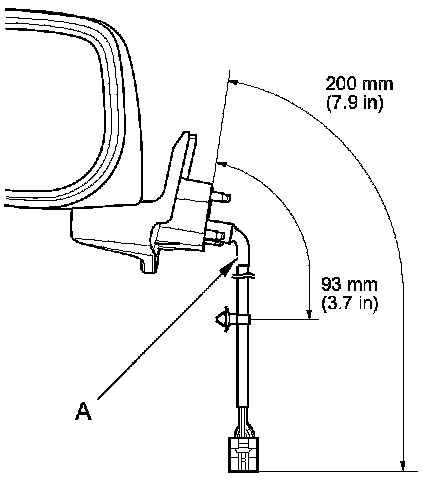

10. Apply tape (A) to seal the wire harness.





11. Reassemble in the reverse order of disassembly. Be careful not to break the mirror holder when reinstalling it to the actuator Mirror Holder Replacement.

12. Reinstall the mirror assembly on the door.

13. Operate the power mirror to make sure if works smoothly.
