Power Mirror Replacement




Power Mirror Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the door or the related parts.

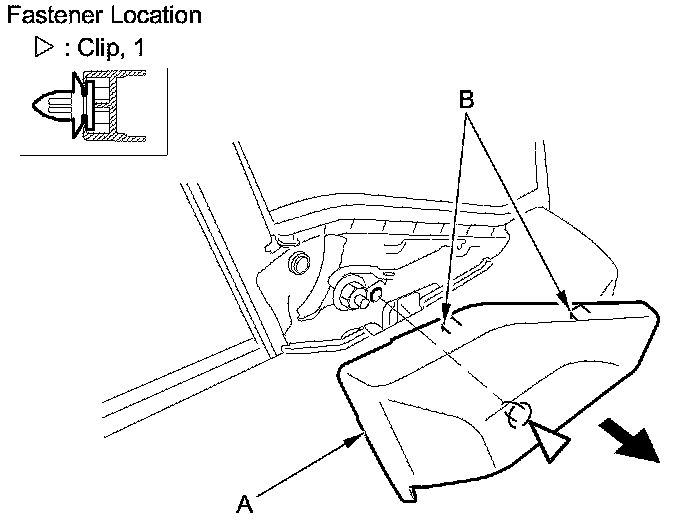

1. Carefully pull the door mirror cover (A) to release the hooks (B) and detach the clip, then remove the cover.





2. Remove the front door panel Service and Repair.

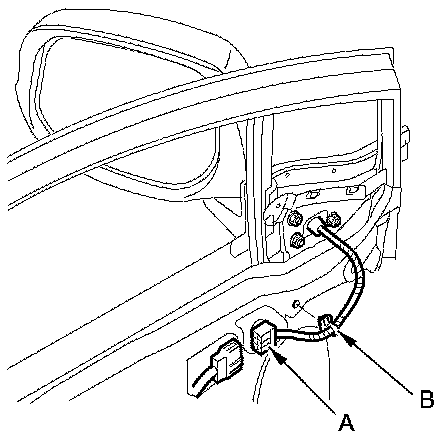

3. Disconnect the power mirror connector (A), and detach the harness clip (B).

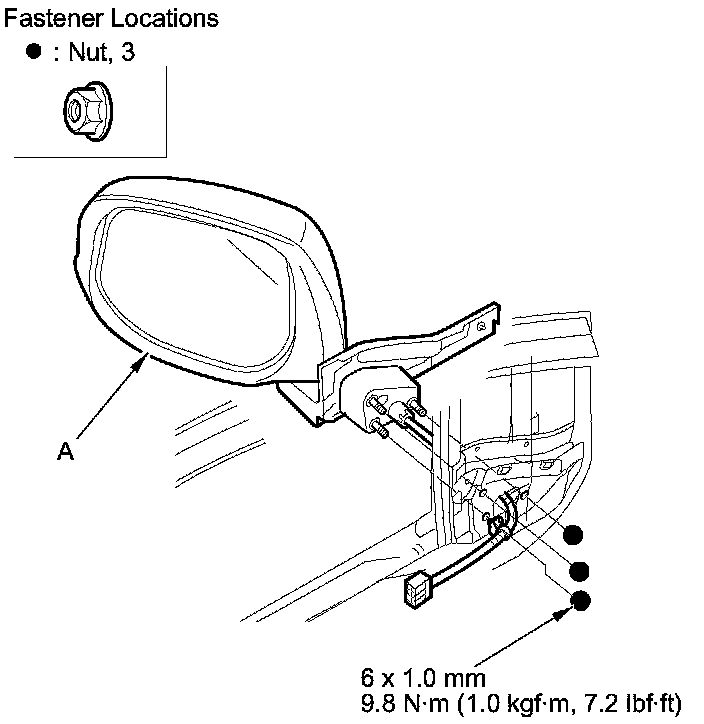

4. While holding the power mirror (A), remove the nuts securing the mirror.





5. While holding the mirror, pull out the harness through the hole in the door. Take care not to scratch the door.

6. Install the power mirror in the reverse order of removal, and note these items:

- Make sure the connector is plugged in properly.
- If the clip is damaged or stress-whitened, replace it with a new one.
- Push the clip and hooks into place securely.
