Climate Control Unit Knob Dial Replacement




Climate Control Unit Knob Dial Replacement

NOTE:

- Do not work in a dusty or dirty place.
- Do not work with dusty hands.
- Discharge static electricity from your body before and during the work.
- Do not touch the circuit board(s) with your bare hands.

1. Remove the climate control unit Climate Control Unit Removal/Installation.

2. Remove the self-tapping screws, and open the cover.

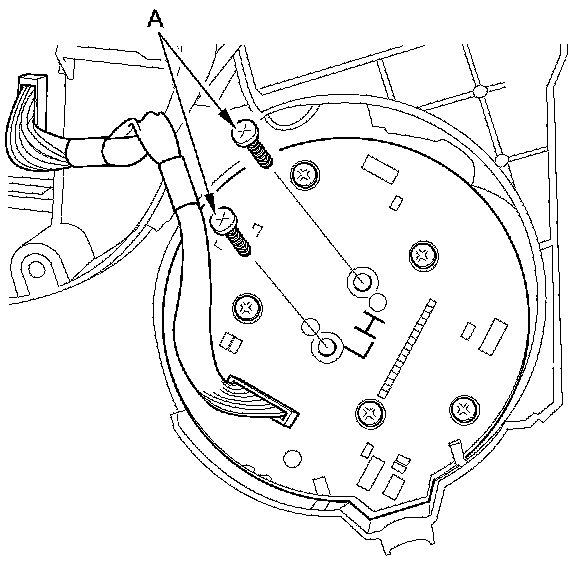

3. Remove the self-tapping screws (A).






4. Pull out knob dial (A).





5. Install the knob dial in the reverse order of removal. After installation, operate the various functions to see whether it works properly.

NOTE: Push the knob dial into appropriate position until it clicks.

6. Run the self-diagnostic function to confirm that there are no problems in the system.
