Drive Motor Rotor Position Sensor: Service and Repair
IMA Motor Rotor Position Sensor Removal/Installation 1.
Remove the IMA motor housing
IMA Motor Housing Removal/Installation.
2.

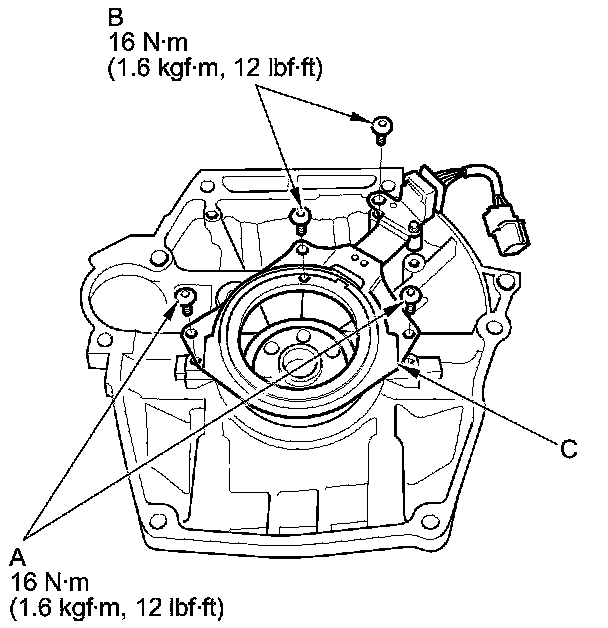

Remove the bolts (A, B) and the IMA motor rotor position sensor (C).
3.
Install the parts in the reverse order of removal.
NOTE: Tighten the bolts (A) first, then tighten the bolts (B).
4.
Do the motor rotor position calibration procedure.
