Electric Load Sensor: Service and Repair
ELD Replacement 1.
Remove the under-dash fuse/relay box
Under-Dash Fuse/Relay Box Removal And Installation (Except Canada Models).
2.

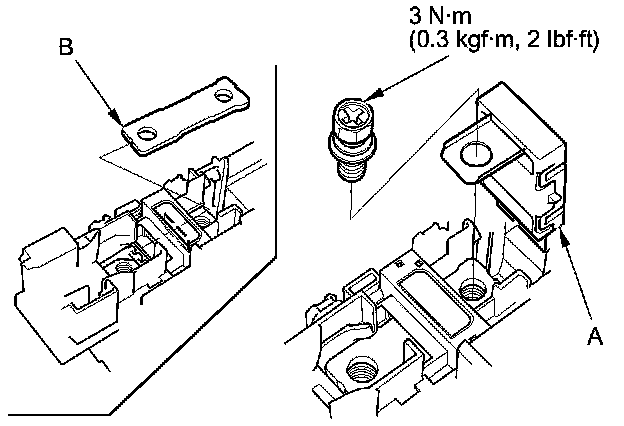

Remove the fuse (A).
3.
Remove the joint bar (B).
4.
Turn over the under-dash fuse/relay box, then remove the ELD (A).
5.
Install the parts in the reverse order of removal.
