Secondary HO2S Replacement
Secondary HO2S ReplacementSpecial Tools Required -
O2 Sensor Wrench Snap-on S6176 or equivalent, commercially available
1.
Remove the cowl cover and the under-cowl panel
Service and Repair.
2.

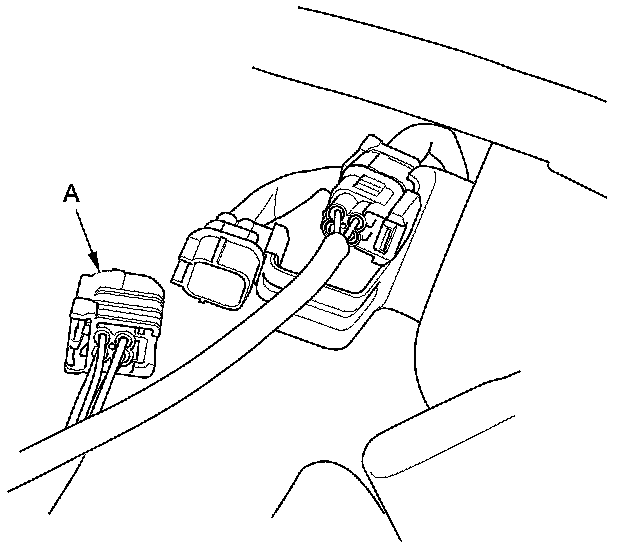

Disconnect the secondary HO2S connector (A).
3.
Raise the vehicle on a lift.
4.

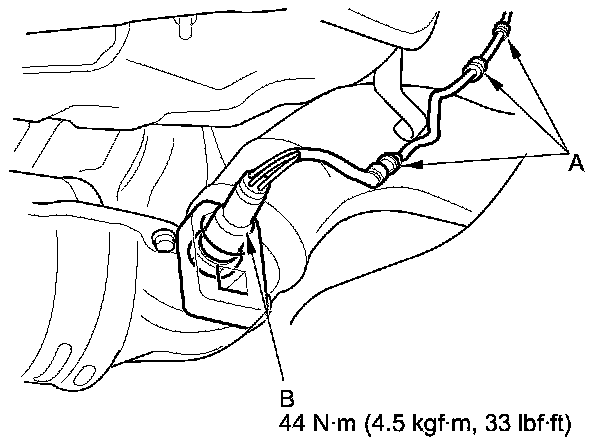

Remove the wire clips (A), then remove the secondary HO2S (B).
5.
Install the parts in the reverse order of removal.
