Rocker Arm Oil Pressure Sensor A Removal/Installation
Rocker Arm Oil Pressure Sensor A Removal/Installation 1.
Remove the engine cover.
2.

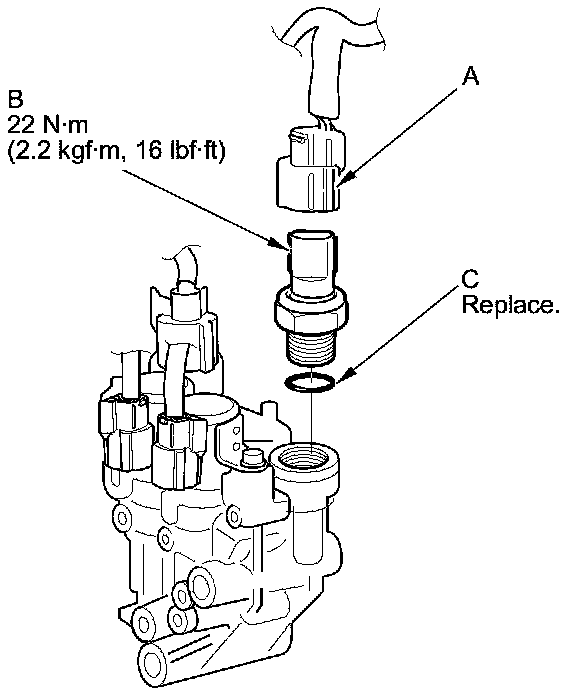

Disconnect the rocker arm
oil pressure sensor A connector (A).
3.
Remove rocker arm
oil pressure sensor A (B).
4.
Install rocker arm
oil pressure sensor A in the reverse order of removal with a new O-ring (C).
