EGR Tube: Service and Repair




EGR Pipe Removal and Installation

Removal

1. Remove the cowl cover and the under-cowl panel Service and Repair.

2. Remove the bolts (A) and the nuts (B).





3. Remove the EGR pipe (C).

Installation

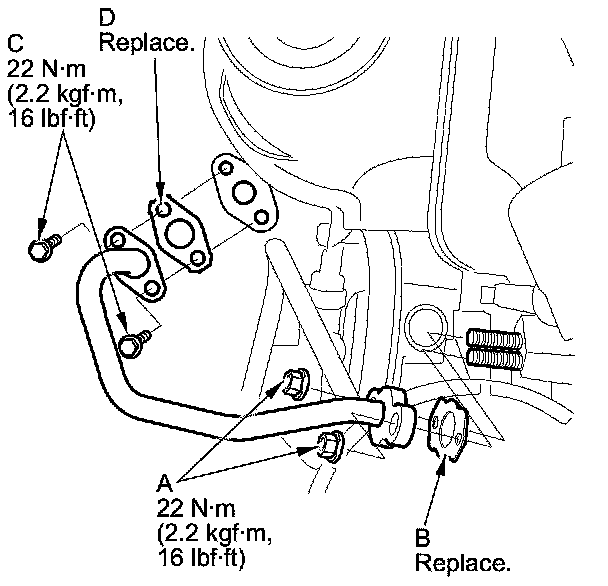

1. Install the EGR pipe to the water passage side, then tighten the nuts (A) by hand with a new gasket (B).





2. Install the EGR pipe to the TWC side, tighten the bolts (C) by hand with a new gasket (D), then torque the bolts.

3. Torque the nuts on the water passage side.

4. Install the cowl cover and the under-cowl panel Service and Repair.
