Shift Lock Release/Release Spring Replacement




Shift Lock Release/Release Spring Replacement

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

1. Remove the center console Center Console Removal/Installation.

2. Release the lock tab retaining the A/T gear position indicator panel, and move the indicator panel up.

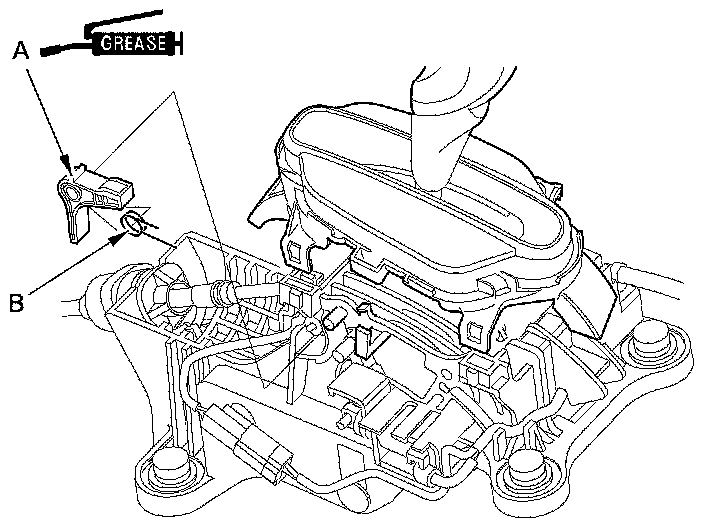

3. Remove the shift lock release (A) and release spring (B), and replace the shift lock release or the release spring.





4. Install the indicator panel on the shift lever bracket base.

5. Install the center console Center Console Removal/Installation.
