Shift Lock Stop/Shift Lock Stop Cushion Replacement




Shift Lock Stop/Shift Lock Stop Cushion Replacement

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

1. Remove the center console Center Console Removal/Installation.

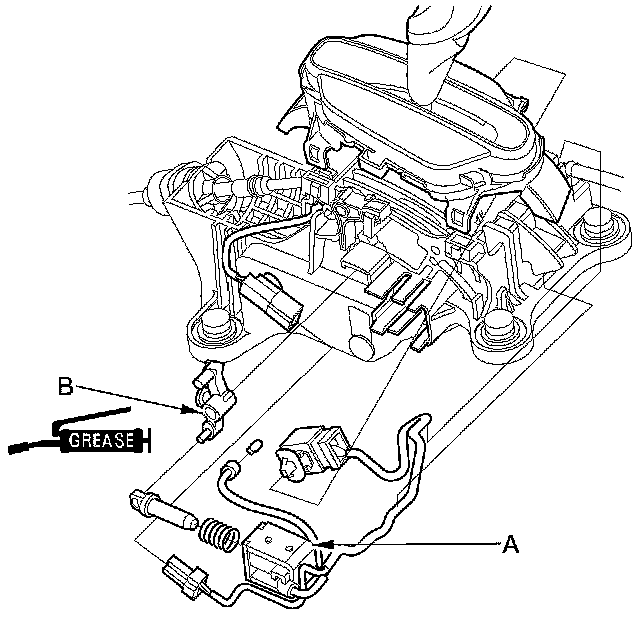

2. Remove the shift lock solenoid assembly (A) Service and Repair.





3. Remove the shift lock stop/stop cushion (B), and replace them as an assembly.

4. Install the shift lock solenoid assembly Service and Repair.

5. Install the center console Center Console Removal/Installation.
