CVT Input Shaft (Drive Pulley) Speed Sensor Replacement




CVT Input Shaft (Drive Pulley) Speed Sensor Replacement

1. Remove the air cleaner Service and Repair.

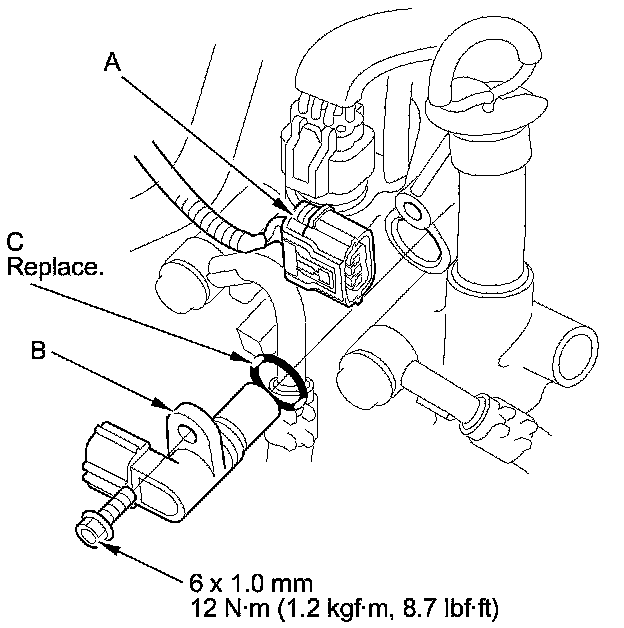

2. Disconnect the CVT input shaft (drive pulley) speed sensor connector (A), then remove the CVT input shaft (drive pulley) speed sensor (B).





3. Install a new O-ring (C) on a new CVT input shaft (drive pulley) speed sensor, then install the CVT input shaft (drive pulley) speed sensor in the transmission housing.

4. Check the connector for rust, dirt, or oil, and clean or repair if necessary then connect the connector securely.

5. Install the air cleaner Service and Repair.
